Connection element for HVI light plus Conductor
A connection element for sealing the HVI light plus Conductor, for implementing the sealing end of the conductor on the supporting tube (head piece) or for connecting to other parts of the external lightning protection system or earth-termination system (including a heat-shrinkable sleeve).
This connection element can be used for installation outside the tube for HVI light plus supporting tubes.
1 Produkt

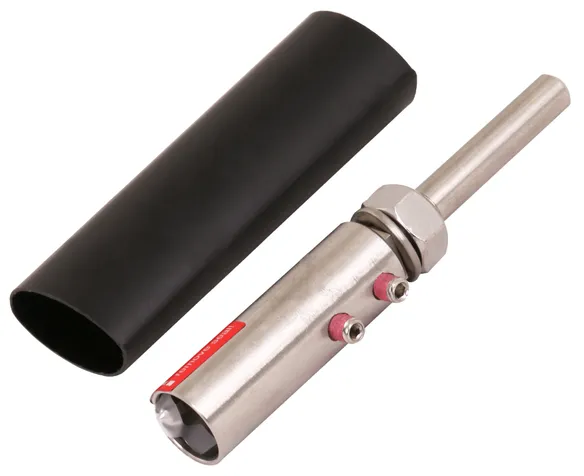

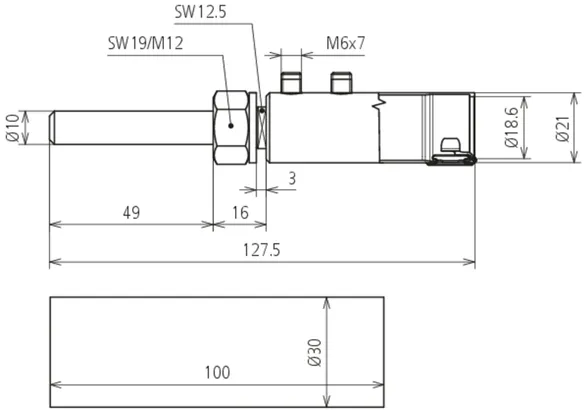

Obj. č. 819640 AE BO10 KF HVI 60 V2A
GTIN 4013364481763, Číslo celního sazebníku (EU): 85359000, Váha brutto: 162.90 g, Balící jednotka: 10.00 pc(s)
Technické informace
Material | StSt |
Connection | bolt Ø10 mm, L 50 mm |
Diameter Ø connection element | 21 mm |
Lightning current carrying capability (10/350 µs) | 150 kA |

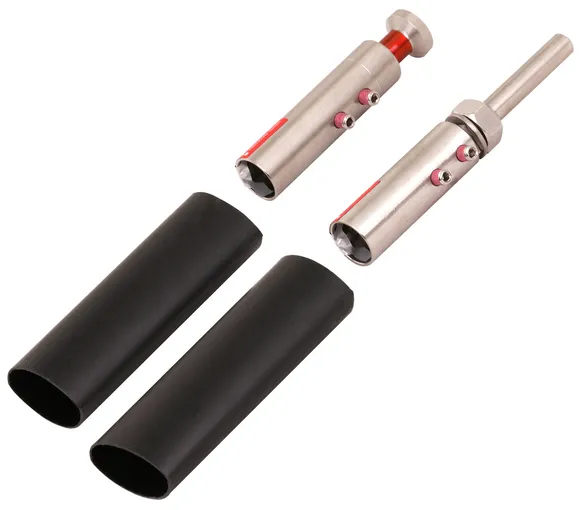

Connection kit for HVI light plus Conductor for installation inside the tube
Two connection elements for sealing the HVI light plus Conductor at both ends. A connection element for implementing the sealing end of the conductor in the supporting tube (head piece) and a connection element for connecting to other parts of the external lightning protection system or earth-termination system (including two heat-shrinkable sleeves).
These connection elements can be used with HVI light plus supporting tubes.
1 Produkt

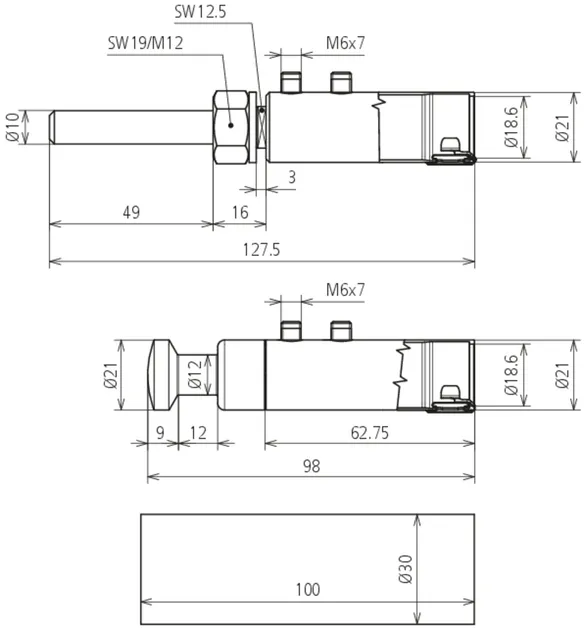

Obj. č. 819645 HVI LI PL ASS RIV KF V2A
GTIN 4013364481770, Číslo celního sazebníku (EU): 85359000, Váha brutto: 341.42 g, Balící jednotka: 1.00 pc(s)
Technické informace
Material | StSt |
Connection | bolt Ø10 mm, L 50 mm |
Diameter Ø connection element | 21 mm |
Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |

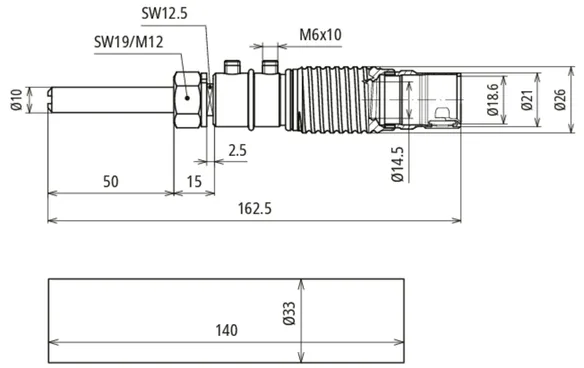

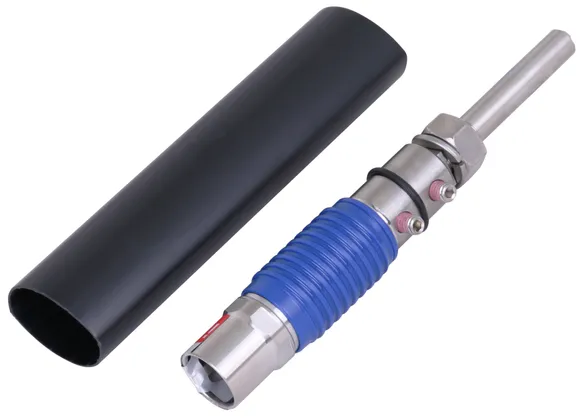

Obj. č. 819646 AE ISO BO10 KF HVI 60 V2A
GTIN 4013364511460, Číslo celního sazebníku (EU): 85359000, Váha brutto: 205.80 g, Balící jednotka: 5.00 pc(s)
Technické informace
It should be installed | Earth-side |
Suitable for | HVI light plus |
Material | StSt / plastic |
Connection | Bolt Ø10 mm, L 50 mm with M12 thread with spring washer |
Lightning current carrying capability (10/350 µs) | 150 kA |

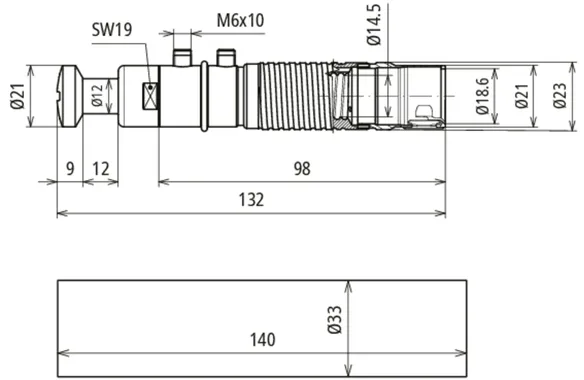

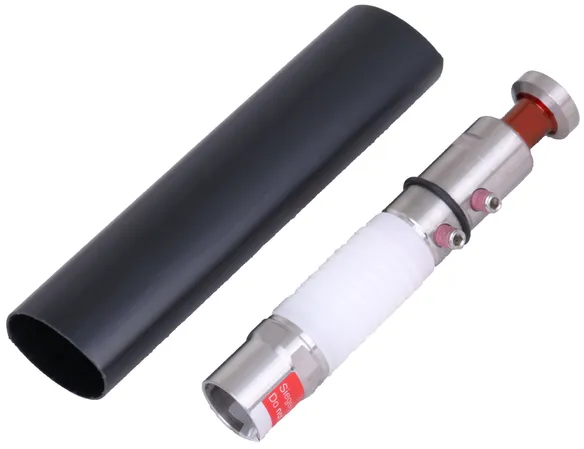

Obj. č. 819647 AE ISO RIV KF HVI 60 V2A
GTIN 4013364511477, Číslo celního sazebníku (EU): 85359000, Váha brutto: 208.80 g, Balící jednotka: 5.00 pc(s)
Technické informace
It should be installed | Installation inside the tube |
Suitable for | HVI light plus |
Material | StSt / plastic |
Connection | Special mushroom head |
Lightning current carrying capability (10/350 µs) | 150 kA |

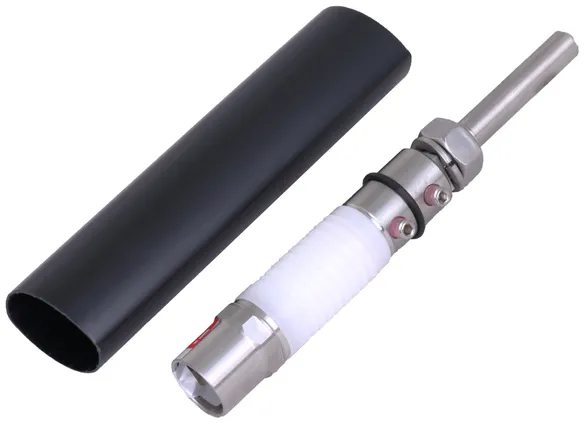

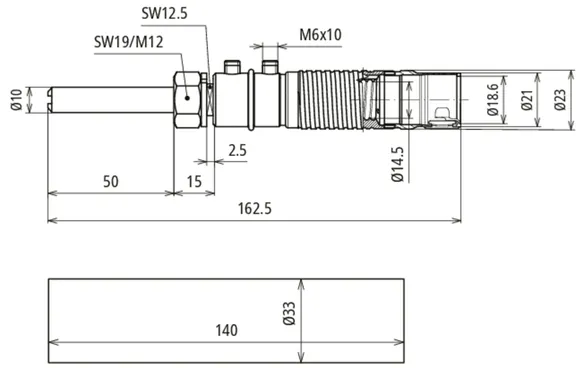

Obj. č. 819648 AE ISO RAV KF HVI 60 V2A
GTIN 4013364511484, Číslo celního sazebníku (EU): 85359000, Váha brutto: 200.20 g, Balící jednotka: 5.00 pc(s)
Technické informace
It should be installed | Installation outside the tube |
Suitable for | HVI light plus |
Material | StSt / plastic |
Connection | Bolt Ø10 mm, L 50 mm with M12 thread with spring washer |
Lightning current carrying capability (10/350 µs) | 150 kA |

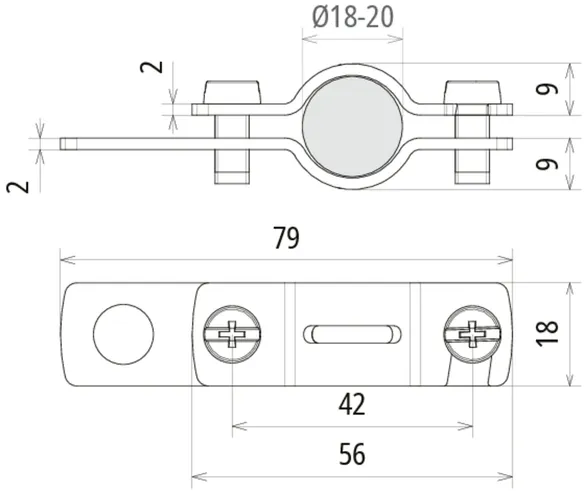

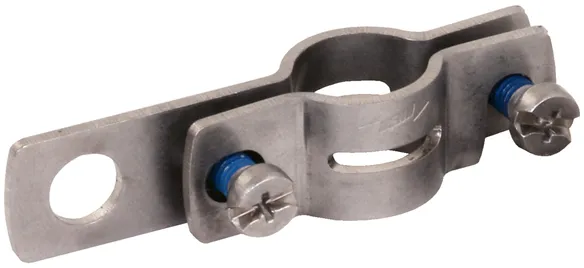

Obj. č. 410222 PAE 18 EX AB11 V2A
GTIN 4013364482289, Číslo celního sazebníku (EU): 85359000, Váha brutto: 50.92 g, Balící jednotka: 1.00 pc(s)
Technické informace
Material | StSt |
Clamping range Ø | 18 mm |
Connection hole Ø | 10.5 mm |
Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |

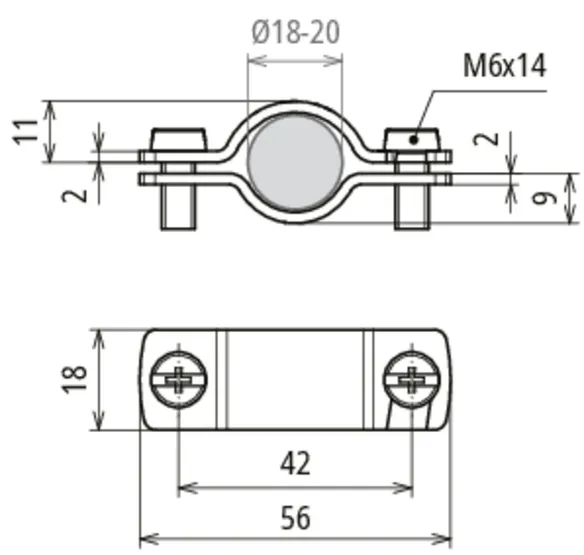

Obj. č. 819649 MPK 18 V2A
GTIN 4013364512498, Číslo celního sazebníku (EU): 85389099, Váha brutto: 41.80 g, Balící jednotka: 5.00 pc(s)
Technické informace
Suitable for | HVI light plus and HVI |
Material | StSt |
Clamping range Ø | 18–20 mm |

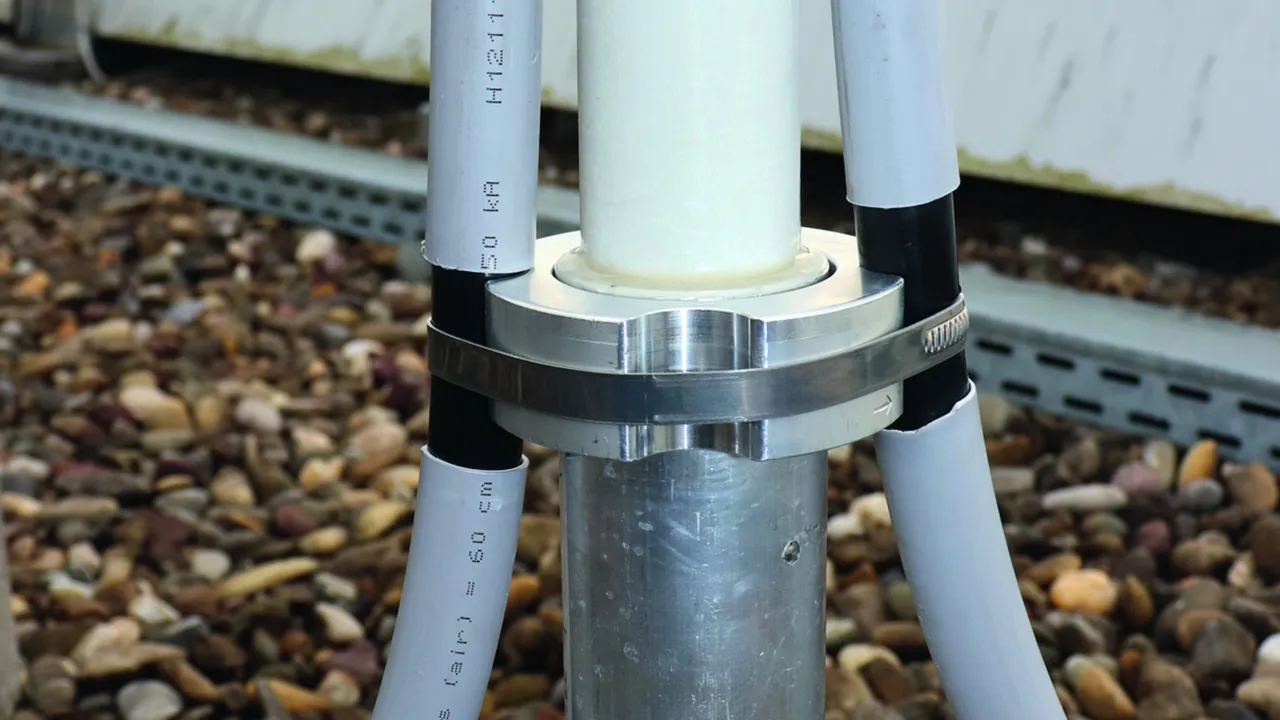

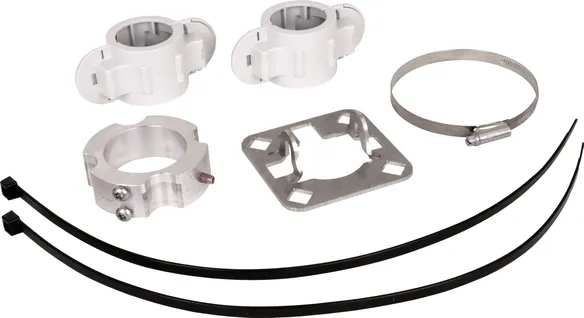

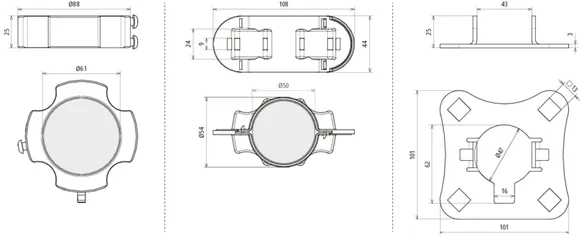

Air-termination mast fixing kit, Ø40
Fixing kit for attaching the HVI light plus Conductor to the HVI light plus supporting tubes, Ø40 mm, consisting of connection plate and fixing ring with stainless steel clamp for the sealing end (including four plastic holder halves and two cable ties).
1 Produkt

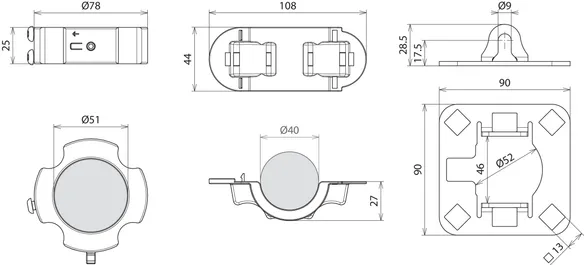

Obj. č. 819642 BFS SR D40 4AE HVI LI PL AL V2A KST
GTIN 4013364499638, Číslo celního sazebníku (EU): 85389099, Váha brutto: 462.00 g, Balící jednotka: 1.00 pc(s)
Technické informace
Material | StSt / Al / Plastic |
Connection plate support | square hole 13 mm |
Conductor holder | 4x |
Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |

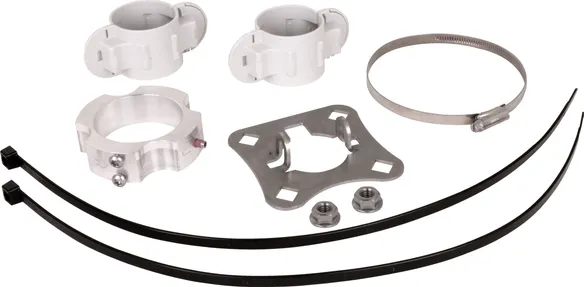

Obj. č. 819283 BFS SR D50 4AE HVI LI PL AL V2A KST
GTIN 4013364499621, Číslo celního sazebníku (EU): 85389099, Váha brutto: 515.44 g, Balící jednotka: 1.00 pc(s)
Technické informace
Material | StSt / Al / Plastic |
Connection plate support | Square hole, 13 mm |
Conductor holder | 4x |
Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |

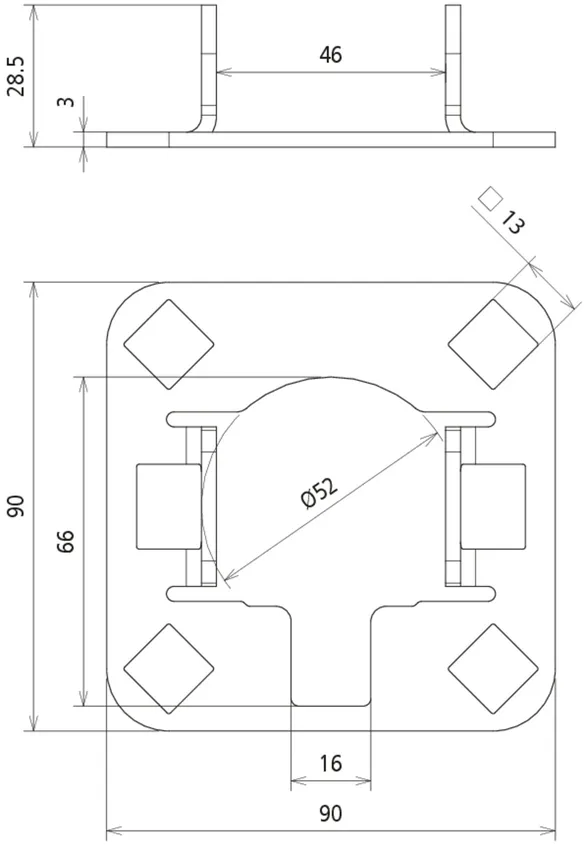

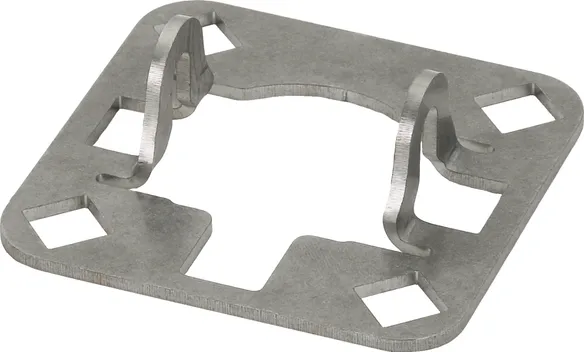

Obj. č. 819298 AP SR D40 4AE HVI LI PL V2A
GTIN 4013364492653, Číslo celního sazebníku (EU): 85389099, Váha brutto: 135.20 g, Balící jednotka: 1.00 pc(s)
Technické informace
Material | StSt |
Connection plate support | Square hole, 13 mm |
Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
