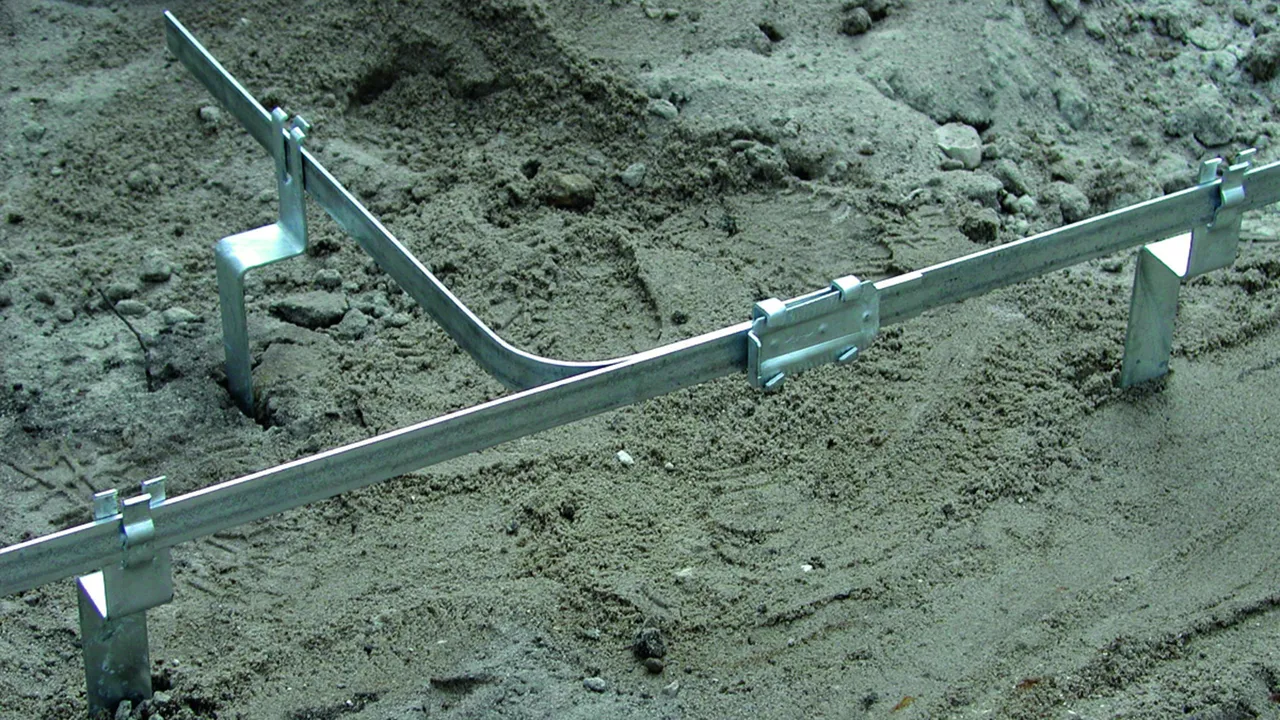

Wedge connector for T, cross and parallel connections Wedge connector For T, cross and parallel connections for use in concrete foundations With lock-in position in the wedge
Material: St/tZn

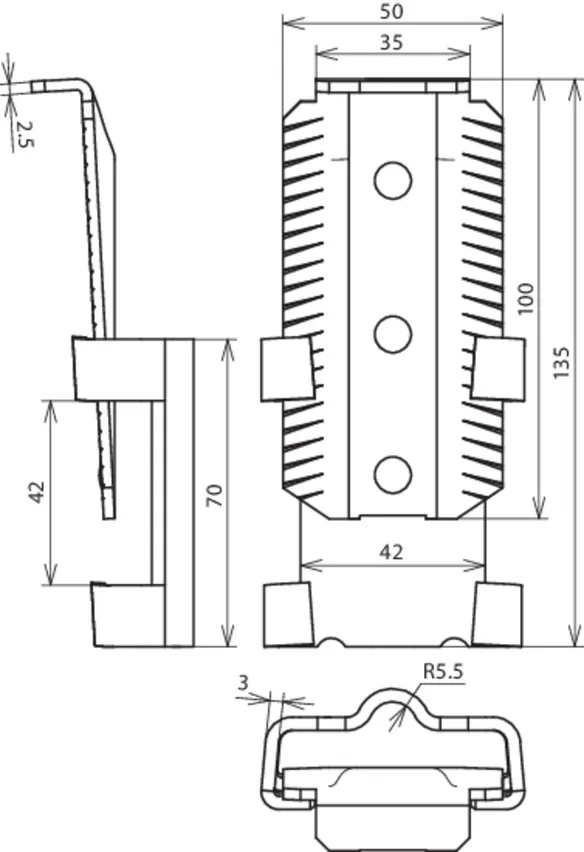

Clamping range Rd / Fl: 10 / 30 x 3.5-40 x 4 mm
Clamping range Fl / Fl: 30 x 3.5-40 x 4 / 30 x 3.5-40 x 4 mm
Material of wedge: St/tZn
Brand: DEHN
Type: KV FE UNI
Part No.: 308001
or equivalent.
