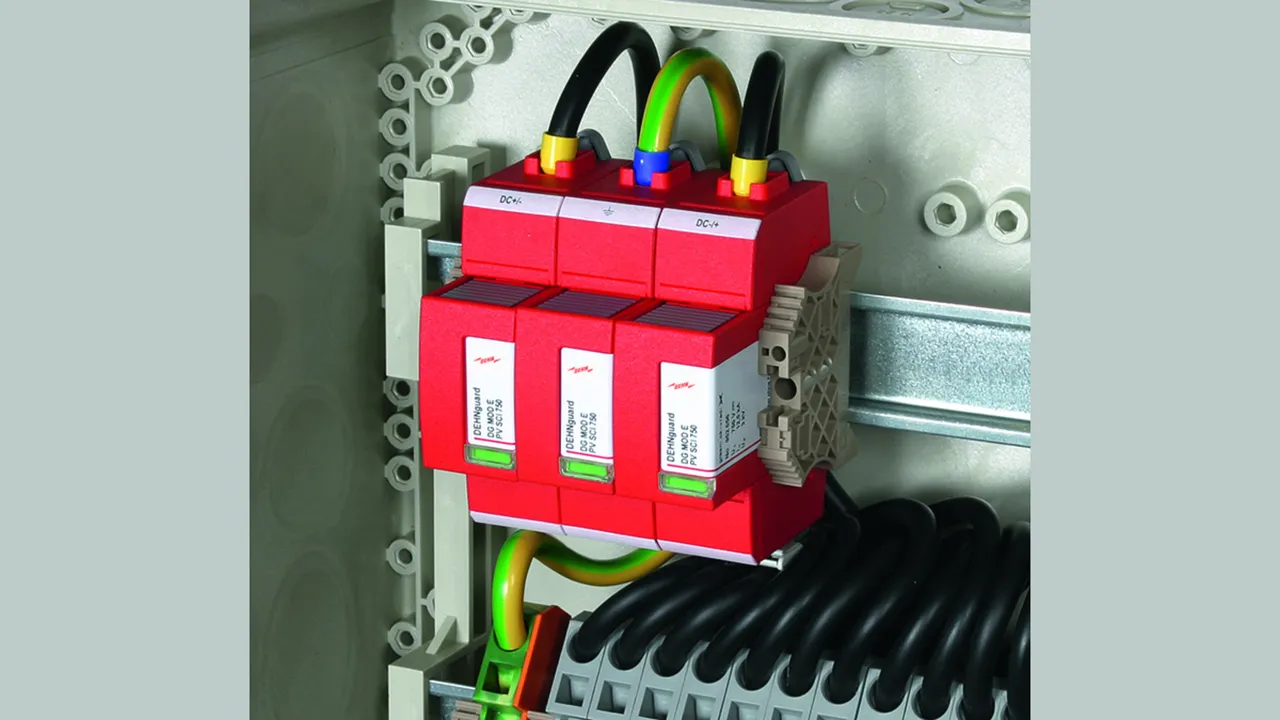

DEHNguard modular E (Y)PV SCI 1500
- Prewired modular complete unit for use in photovoltaic systems up to 1500 V consisting of a base part and plug-in protection modules

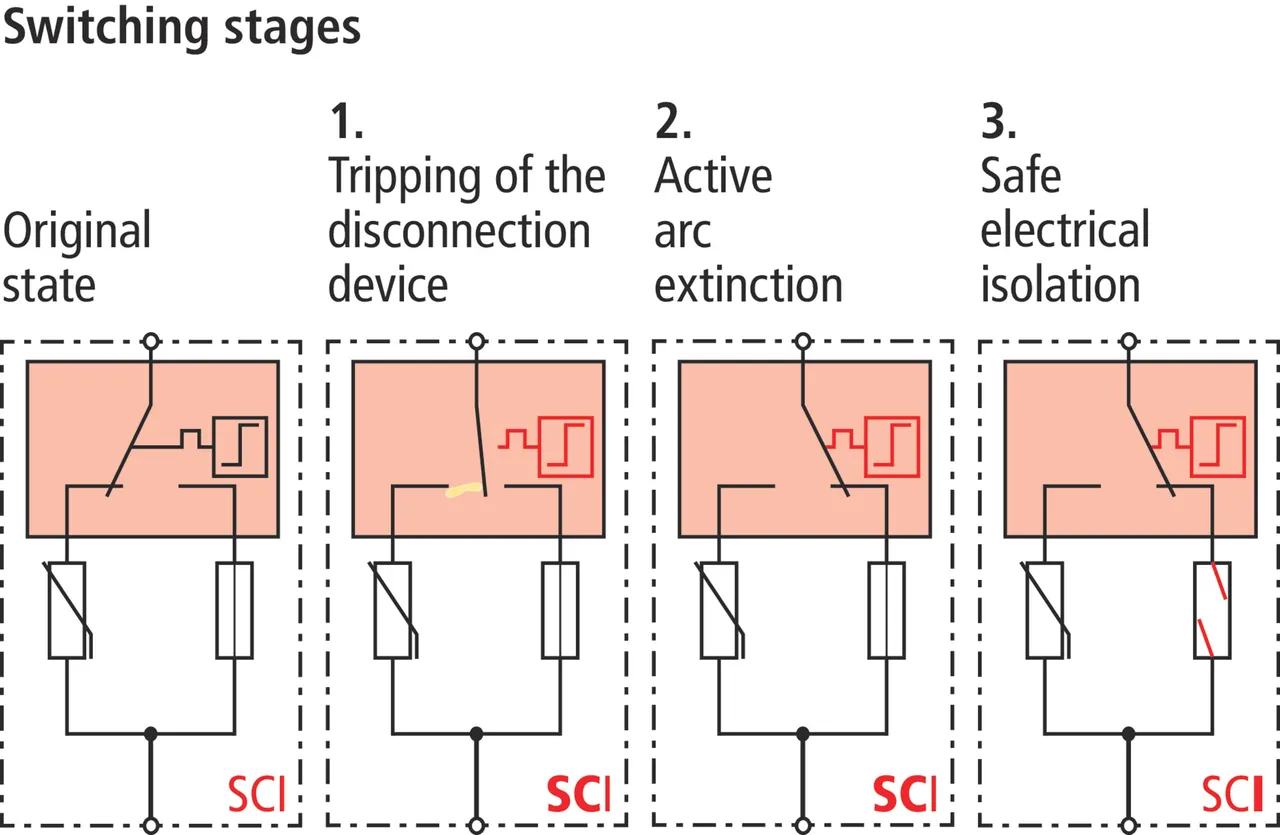

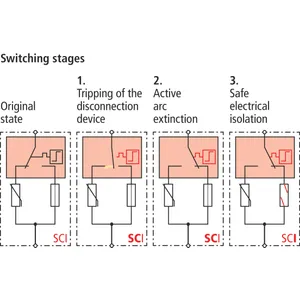

- Combined disconnection and short-circuiting device with safe electrical isolation in the protection module (patented SCI principle)
- New design for safe use in PV systems up to 1500 V
- Tested to EN 50539-11
- Suitable for use in all PV systems in accordance with IEC 60364-7-712
Details

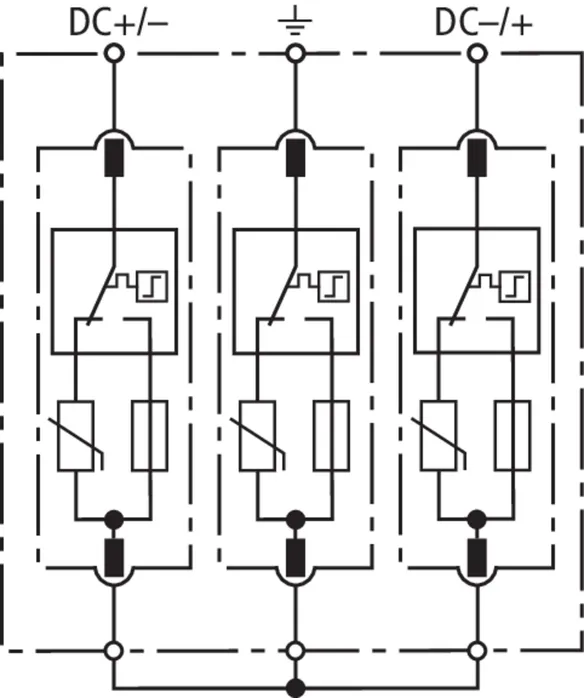

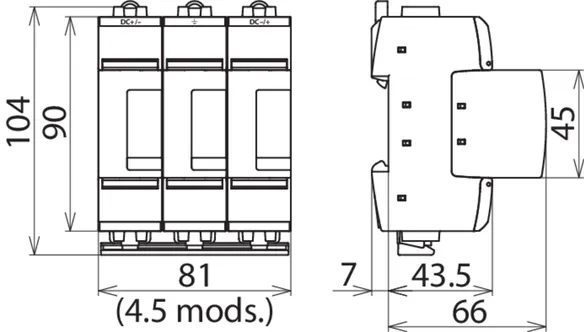

Obj. č. 952520 DG ME YPV SCI 1500
GTIN 4013364149069, Číslo celního sazebníku (EU): 85354000, Váha brutto: 535.70 g, Balící jednotka: 1.00 pc(s)
Technické informace
SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
Max. PV voltage (UCPV ) | 1500 V |
Short-circuit current rating (ISCPV ) | 10 kA |
Total discharge current (8/20 µs) (Itotal ) | 25 kA |
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) | 12.5 kA |
Voltage protection level (UP ) | ≤ 6 kV |
Approvals | KEMA, UL |

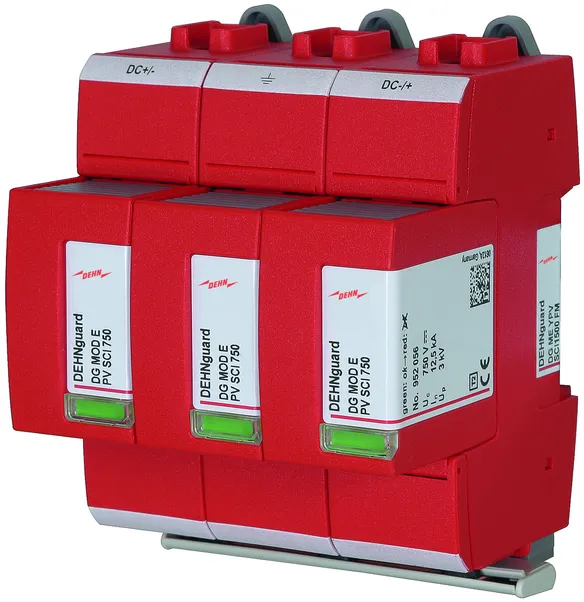

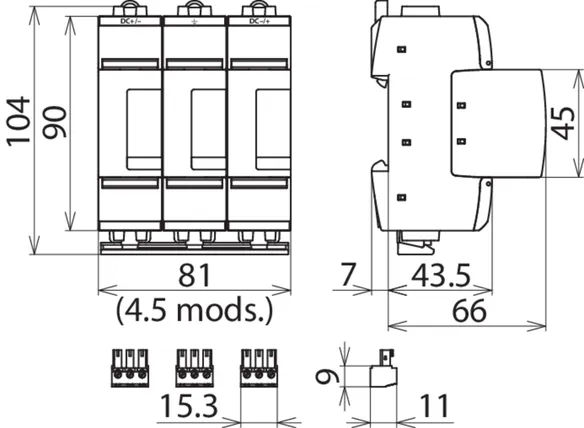

Obj. č. 952525 DG ME YPV SCI1500 FM
GTIN 4013364149076, Číslo celního sazebníku (EU): 85354000, Váha brutto: 556.00 g, Balící jednotka: 1.00 pc(s)
Technické informace
SPD according to EN 61643-11 / IEC 61643-11 | type 2 / class II |
Max. PV voltage (UCPV ) | 1500 V |
Short-circuit current rating (ISCPV ) | 10 kA |
Total discharge current (8/20 µs) (Itotal ) | 25 kA |
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (In ) | 12.5 kA |
Voltage protection level (UP ) | ≤ 6 kV |
Approvals | KEMA, UL |

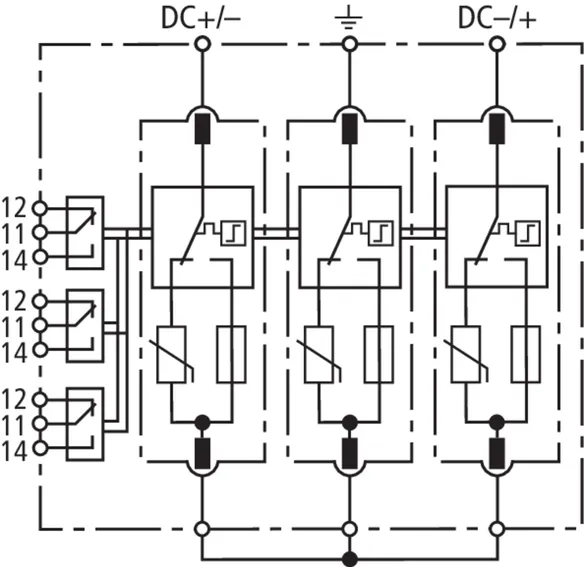

Type of remote signalling contact | changeover contact |
