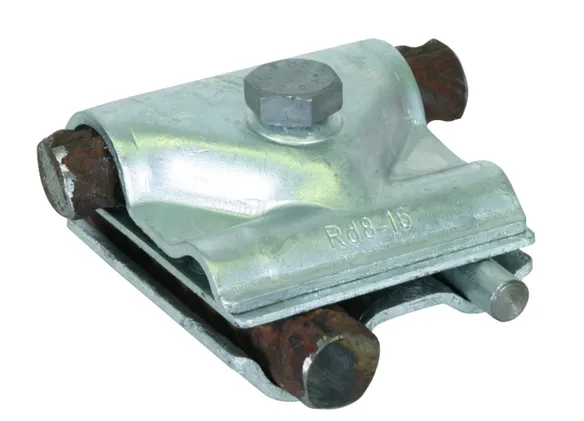

Obj. č. 308041 MAMVK 8.16 15.25 STTZN
GTIN 4013364056411, Číslo celního sazebníku (EU): 85359000, Váha brutto: 483.40 g, Balící jednotka: 20.00 pc(s)
Technické informace
Material of clamp | St/tZn |
Clamping range Rd | 8-16 / 15-25 mm |
Material thickness | 3.0 / 2.0 mm |
Standard | EN 62561-1 |
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 6.2 kA |
*) For exact assignment see test certificate. |

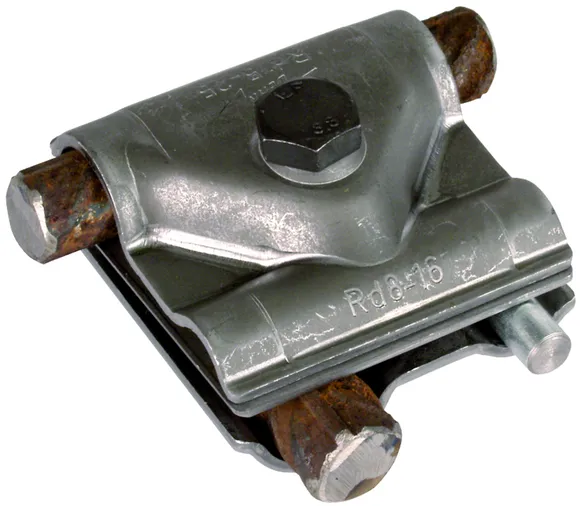

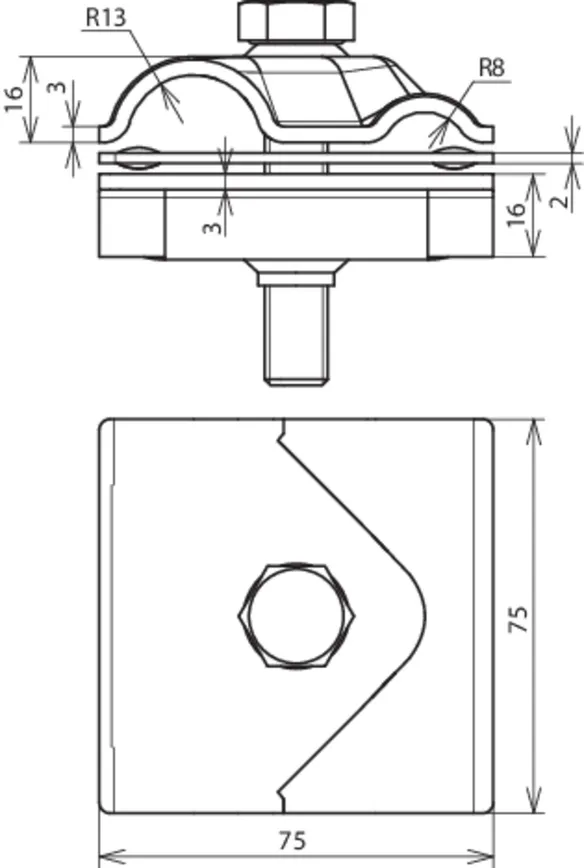

Obj. č. 308040 MAMVK 8.16 15.25 STBL
GTIN 4013364055902, Číslo celního sazebníku (EU): 85359000, Váha brutto: 462.30 g, Balící jednotka: 20.00 pc(s)
Technické informace
Material of clamp | St/bare |
Clamping range Rd | 8-16 / 15-25 mm |
Material thickness | 3.0 / 2.0 mm |
Standard | EN 62561-1 |
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 10.2 kA |
Approvals | UL 467 |
*) For exact assignment see test certificate. |

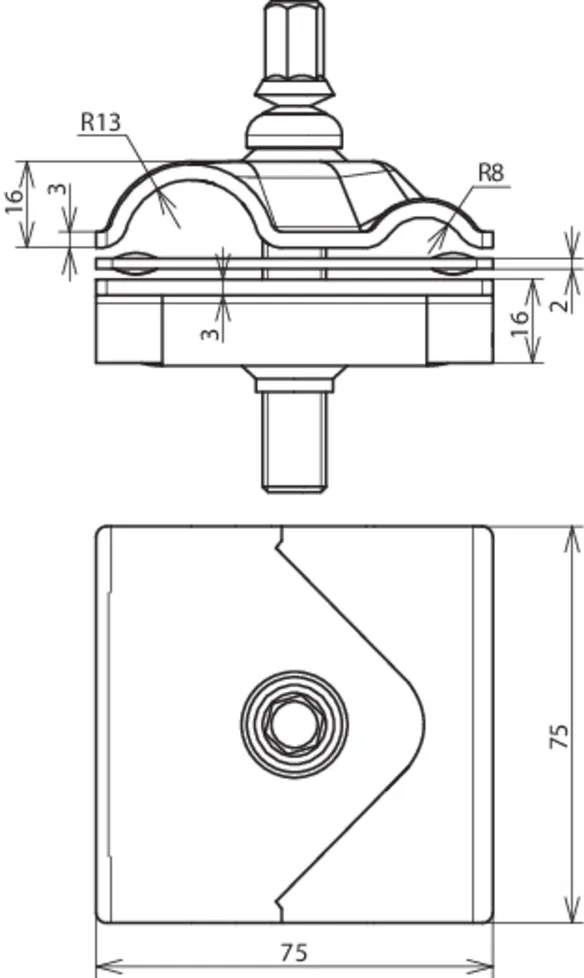

With defined tightening torque
Same design as Part No. 308 041, but with StSt (V2A) tear-off screw, with tear-off torque 35 +/-3 Nm, instead of standard hexagon head screw
- Reliable mounting quality due to constant torque and defined clamping force
- Easy mounting without torque spanner
- Enormously time saving compared to exothermic welding
- No welding smoke hazard for the installer
- No environmental risk
1 Produkt

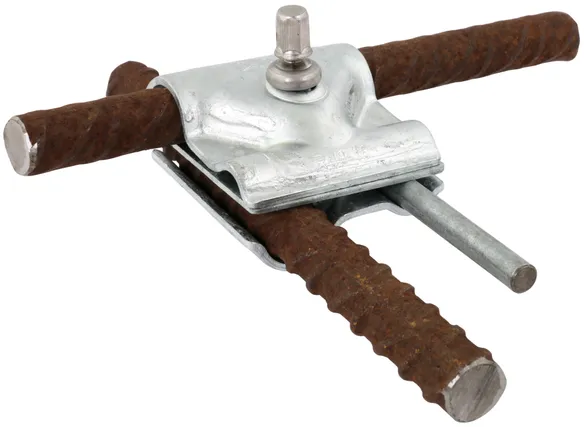

Obj. č. 308044 MAMVK 8.16 15.25 STTZN ARS35NM PAR 20P
GTIN 4013364522992, Číslo celního sazebníku (EU): 85359000, Váha brutto: 479.50 g, Balící jednotka: 20.00 pc(s)
Technické informace
Material of clamp | St/tZn |
Clamping range Rd | 8-16 / 15-25 mm |
Material thickness | 3.0 / 2.0 mm |
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 6.2 kA |
