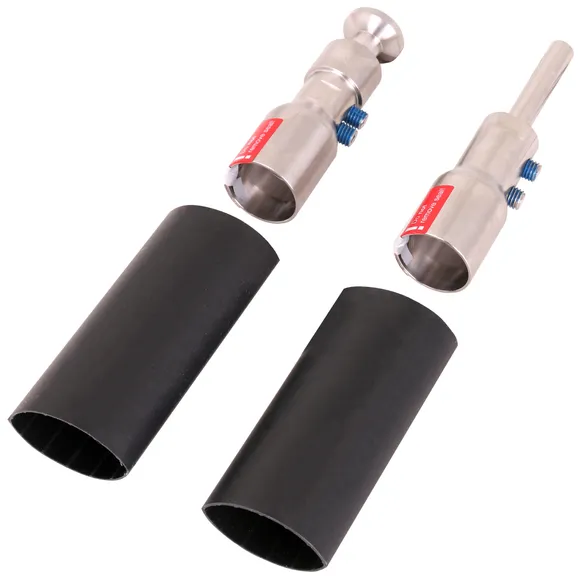

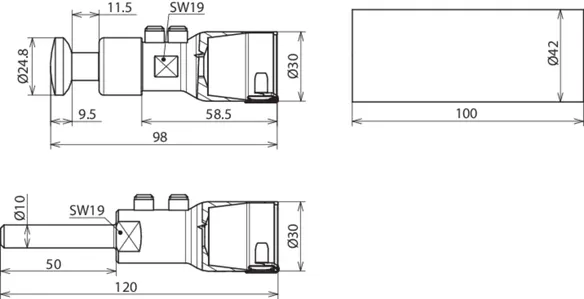

Connection kit for HVI power long Conductor Ø27 mm for installation inside the tube
Connection elements for sealing the HVI power long Conductor at both ends, for implementing the sealing end of the conductor in the supporting tube (head piece) and connection element for connection with other parts of the external lightning protection system or earth-termination system (including two heat-shrinkable sleeves).
1 Produkt
Obj. č. 819142 HVI P LO ASS KF 27 V2A
GTIN 4013364152458, Číslo celního sazebníku (EU): 85359000, Váha brutto: 431.00 g, Balící jednotka: 1.00 pc(s)
Technické informace
Material | StSt |
Connection | bolt Ø10 mm, L 50 mm |
Outside diameter Ø | 30 mm |
Screw | M8x10 threaded pin mm |
Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |

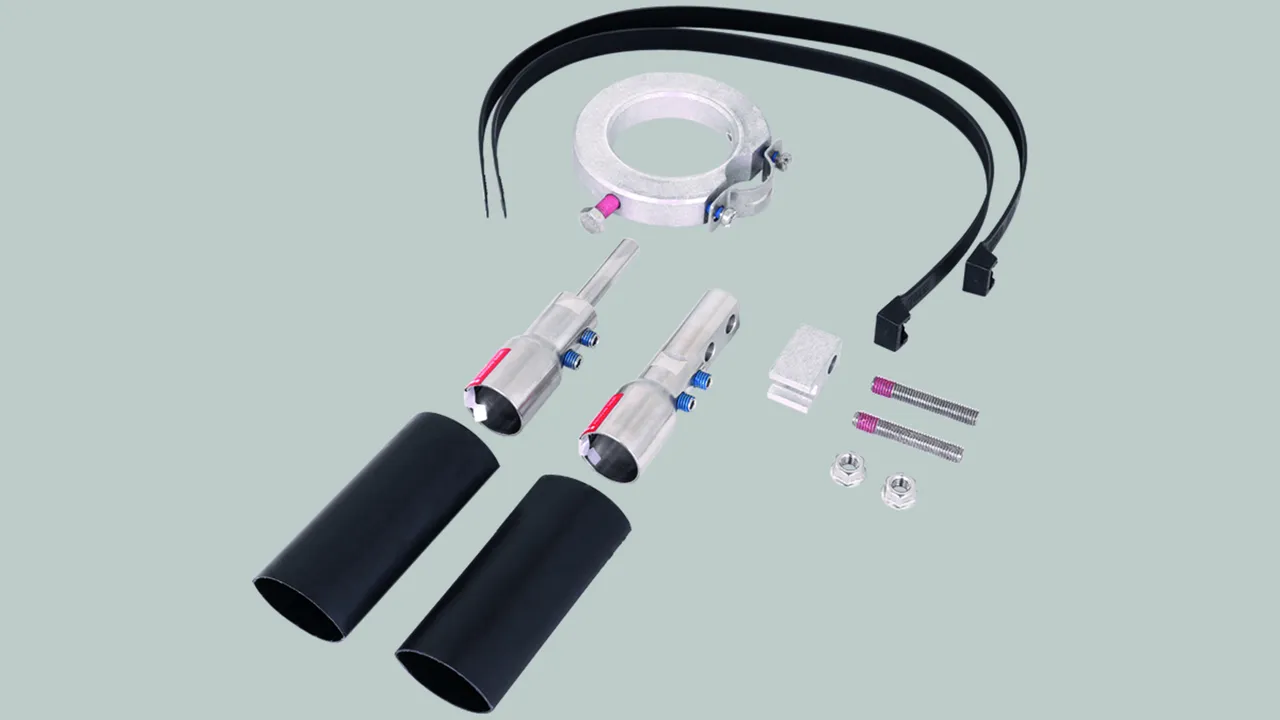

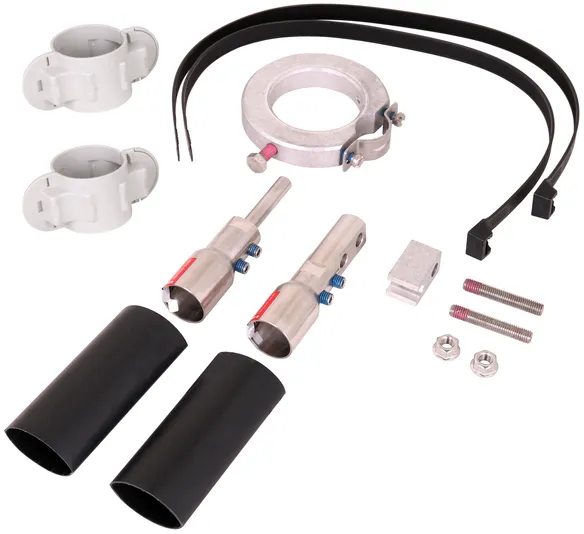

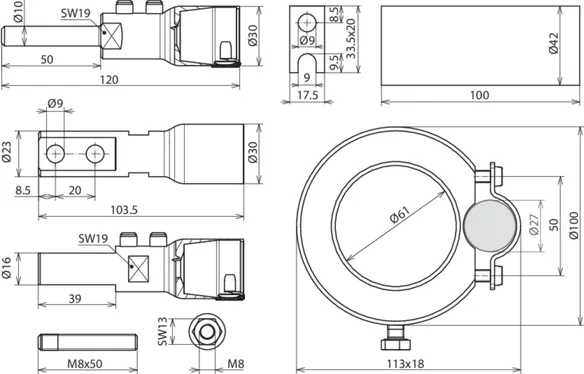

Connection kit for HVI power long Conductor Ø27 mm for installation outside the tube
Connection kit for HVI power Conductor for installation on HVI power supporting tubes GRP / Al consisting of connection elements, threaded pins, connection part, heat-shrinkable sleeves, cable ties and fixing ring with a slotted conductor holder (Ø27 mm).
1 Produkt
Obj. č. 819149 HVI P LO ASS RAV KF 27 V2A
GTIN 4013364272057, Číslo celního sazebníku (EU): 85359000, Váha brutto: 853.00 g, Balící jednotka: 1.00 pc(s)
Technické informace
Material | StSt |
Connection | bolt Ø10 mm, L 50 mm |
Outside diameter Ø | 30 mm |
Screw | M8x10 threaded pin mm |
Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |

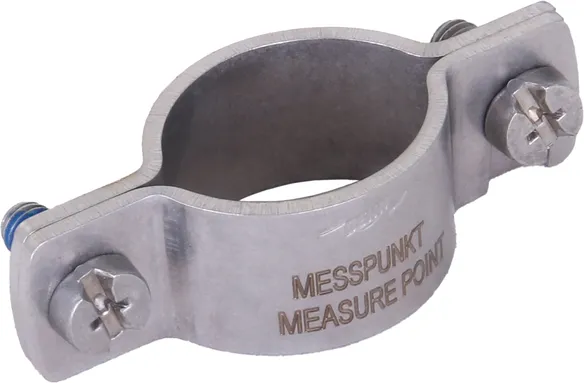

Obj. č. 410239 PAE 27 AB11 V2A
GTIN 4013364152465, Číslo celního sazebníku (EU): 85359000, Váha brutto: 80.00 g, Balící jednotka: 1.00 pc(s)
Technické informace
Material | StSt |
Clamping range Ø | 27 mm |
Connection hole Ø | 11 mm |
Screw | i M10 x 20 mm |
Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
