Obj. č. 953201 DR M 2P 30

GTIN 4013364109674, Číslo celního sazebníku (EU): 85363030, Váha brutto: 90.60 g, Balící jednotka: 1.00 pc(s)

Staré provedení

Vyobrazení

Další informace

CAD data

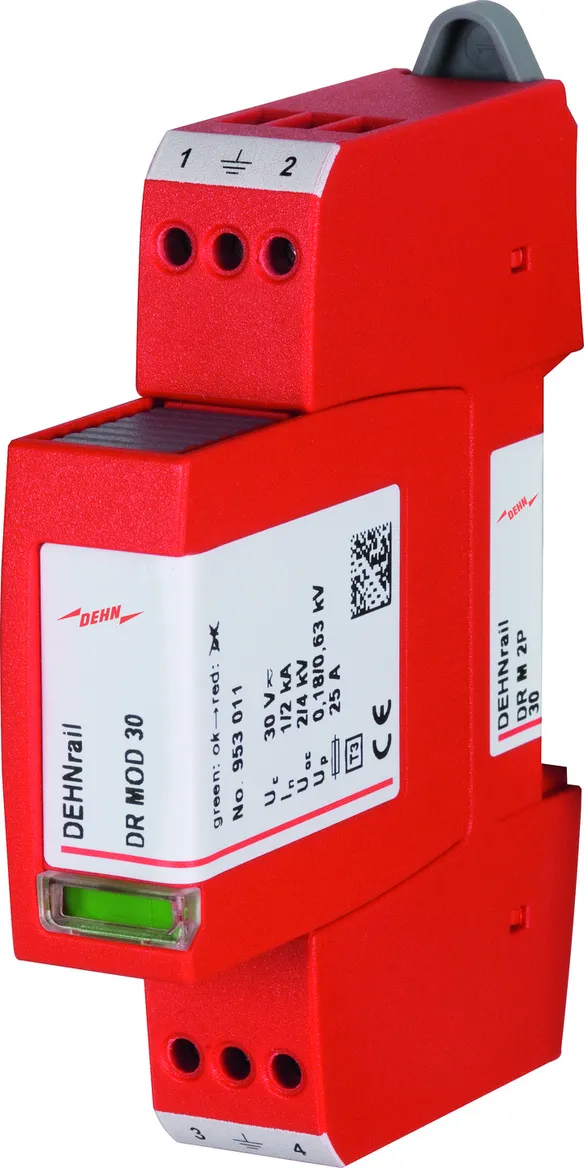

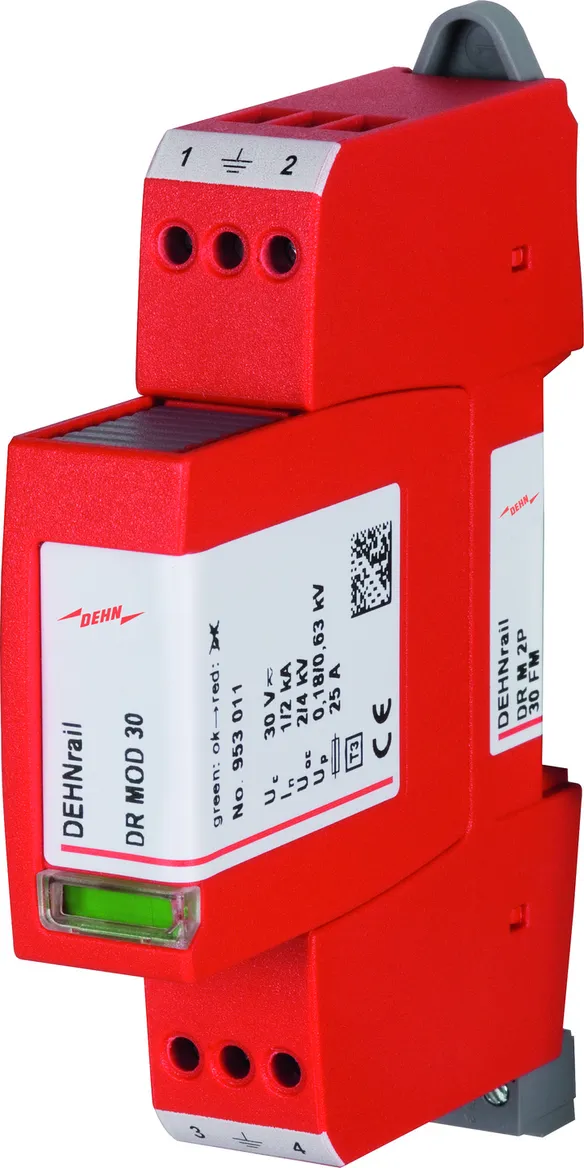

DEHNrail M 2P 30 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 30 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.18 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DR M 2P 30
Part No.: 953201
or equivalent.

Certifikáty

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	30 V
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 180 / ≤ 630 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	24 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	30 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Combination wave (U_OC )	2 kV
Combination wave [L+N-PE] (U_OC_total )	4 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 180 / ≤ 630 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc

Produkt 953201 byl přidán na seznam.

K seznamu

Produkt 953201 byl přidán do nákupního košíku.

K nákupnímu košíku

Obj. č. 953202 DR M 2P 60

GTIN 4013364109681, Číslo celního sazebníku (EU): 85363030, Váha brutto: 91.80 g, Balící jednotka: 1.00 pc(s)

Staré provedení

Vyobrazení

Další informace

CAD data

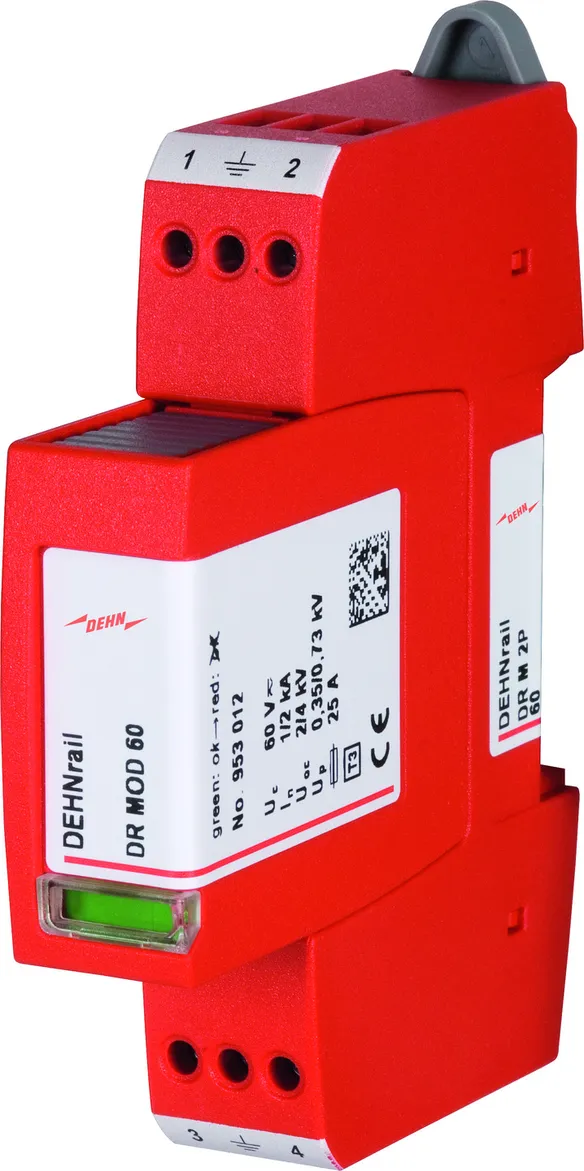

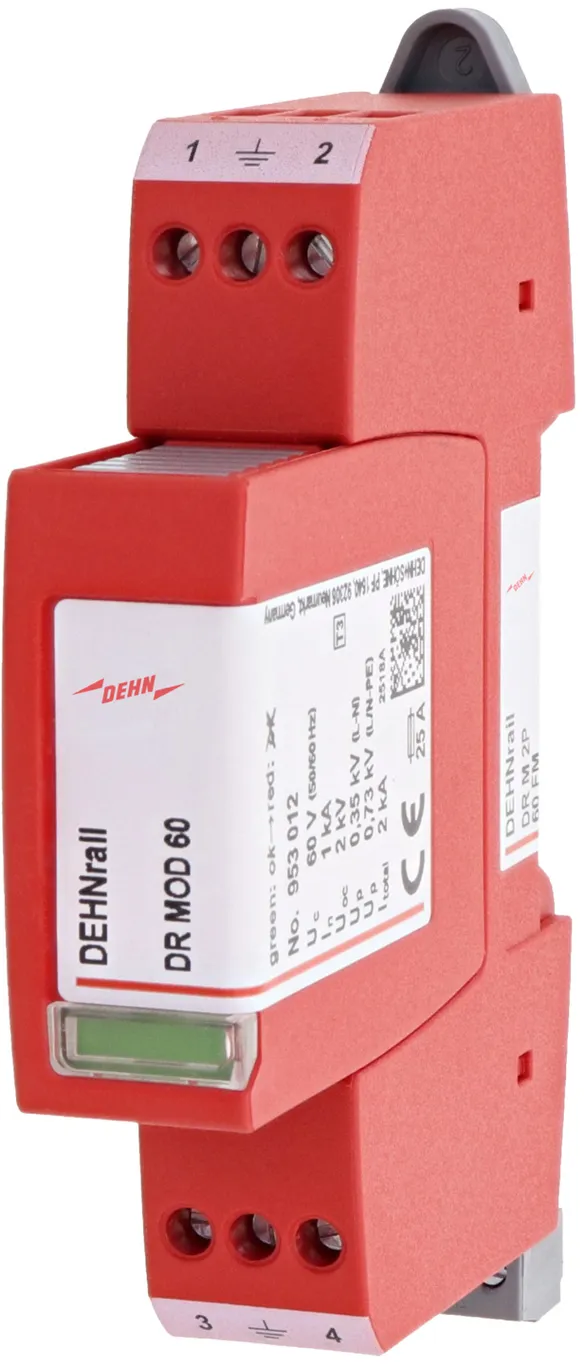

DEHNrail M 2P 60 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 60 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.35 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 60
Part No.: 953202
or equivalent.

Certifikáty

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 350 / ≤ 730 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	48 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Combination wave (U_OC )	2 kV
Combination wave [L+N-PE] (U_OC_total )	4 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 350 / ≤ 730 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc

Produkt 953202 byl přidán na seznam.

K seznamu

Produkt 953202 byl přidán do nákupního košíku.

K nákupnímu košíku

Obj. č. 953203 DR M 2P 75

GTIN 4013364109698, Číslo celního sazebníku (EU): 85363030, Váha brutto: 89.80 g, Balící jednotka: 1.00 pc(s)

Staré provedení

Vyobrazení

Další informace

CAD data

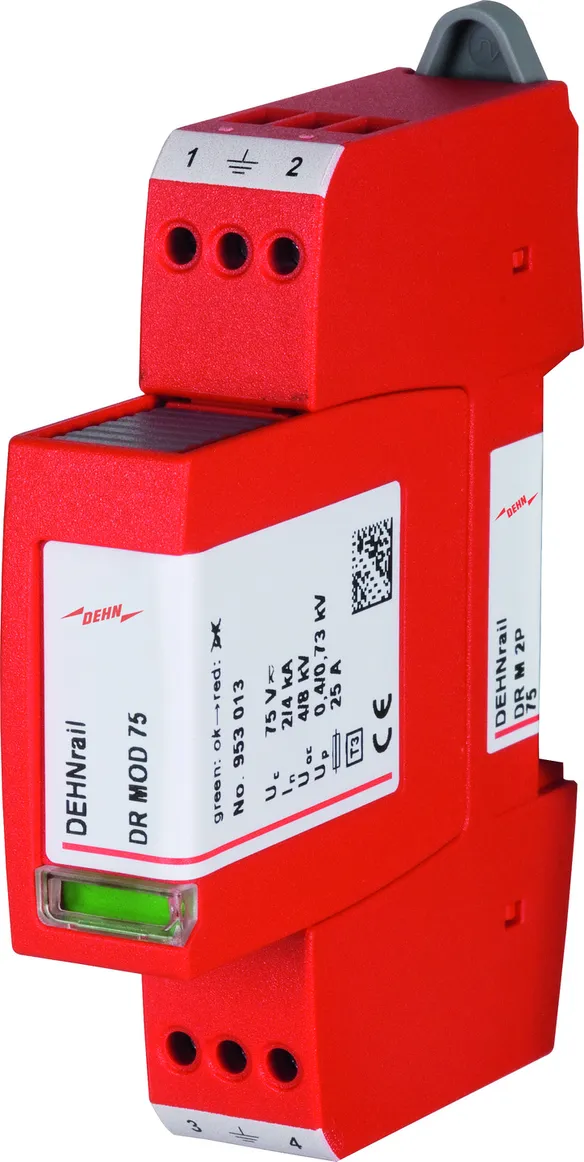

DEHNrail M 2P 75 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.4 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 75
Part No.: 953203
or equivalent.

Certifikáty

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	75 V
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 400 / ≤ 730 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	75 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Combination wave (U_OC )	4 kV
Combination wave [L+N-PE] (U_OC_total )	8 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 400 / ≤ 730 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc

Produkt 953203 byl přidán na seznam.

K seznamu

Produkt 953203 byl přidán do nákupního košíku.

K nákupnímu košíku

Obj. č. 953204 DR M 2P 150

GTIN 4013364109704, Číslo celního sazebníku (EU): 85363030, Váha brutto: 90.00 g, Balící jednotka: 1.00 pc(s)

Staré provedení

Vyobrazení

Další informace

CAD data

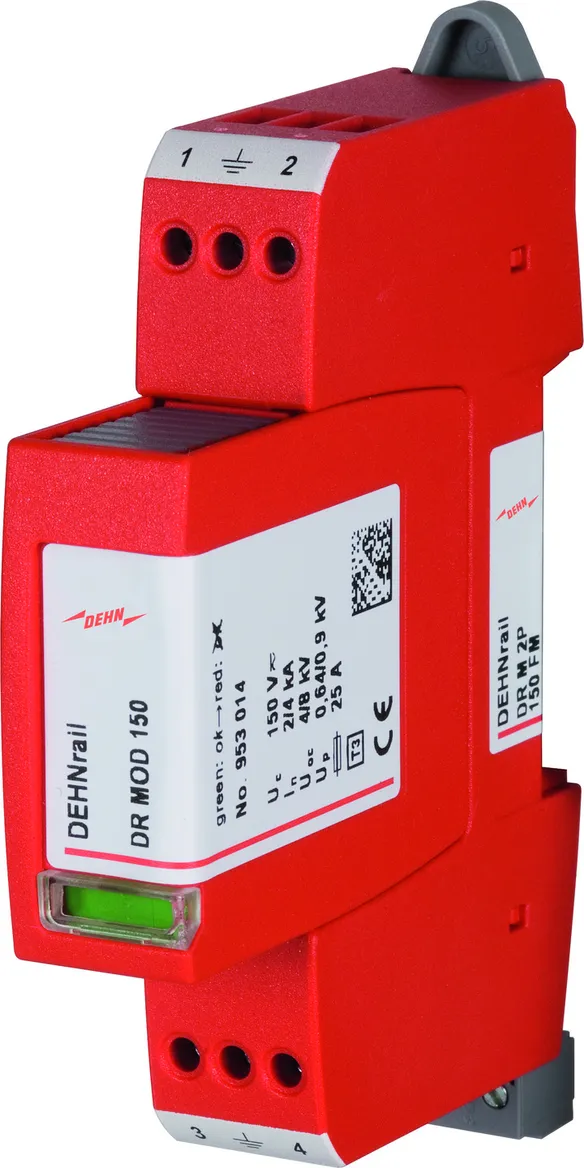

DEHNrail M 2P 150 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.64 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 150
Part No.: 953204
or equivalent.

Certifikáty

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	150 V
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 640 / ≤ 800 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	150 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Combination wave (U_OC )	4 kV
Combination wave [L+N-PE] (U_OC_total )	8 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 640 / ≤ 800 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc

Produkt 953204 byl přidán na seznam.

K seznamu

Produkt 953204 byl přidán do nákupního košíku.

K nákupnímu košíku

Obj. č. 953200 DR M 2P 255

GTIN 4013364108301, Číslo celního sazebníku (EU): 85363030, Váha brutto: 91.70 g, Balící jednotka: 1.00 pc(s)

Staré provedení

Vyobrazení

Další informace

CAD data

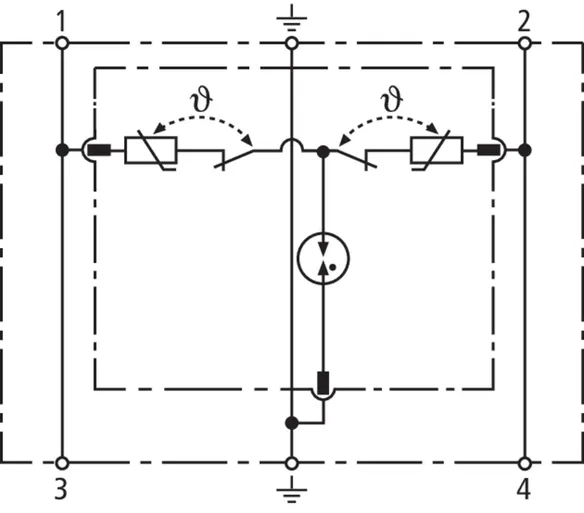

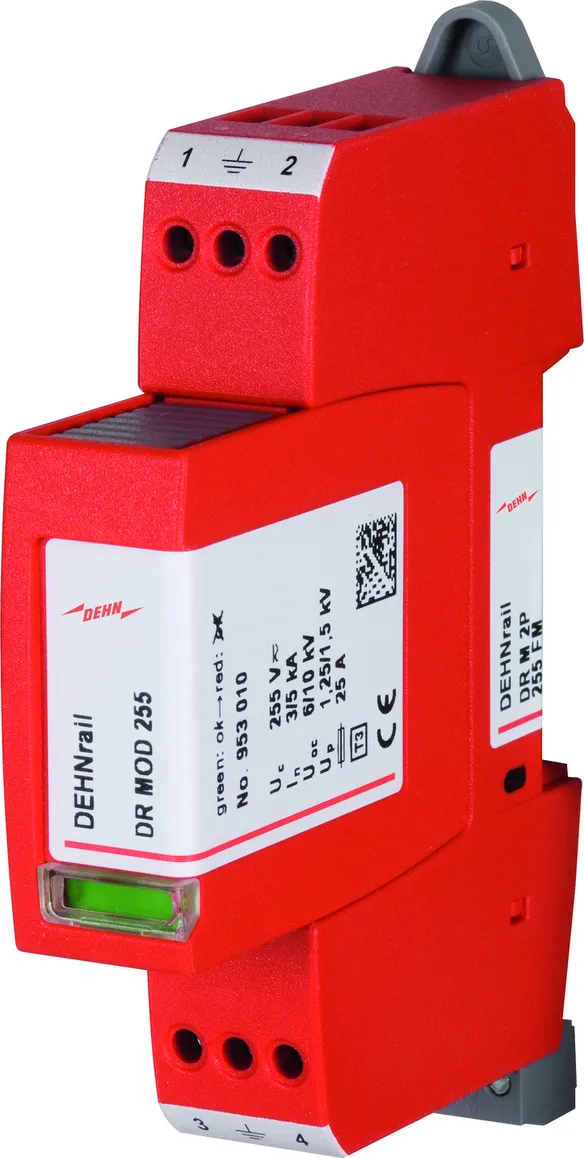

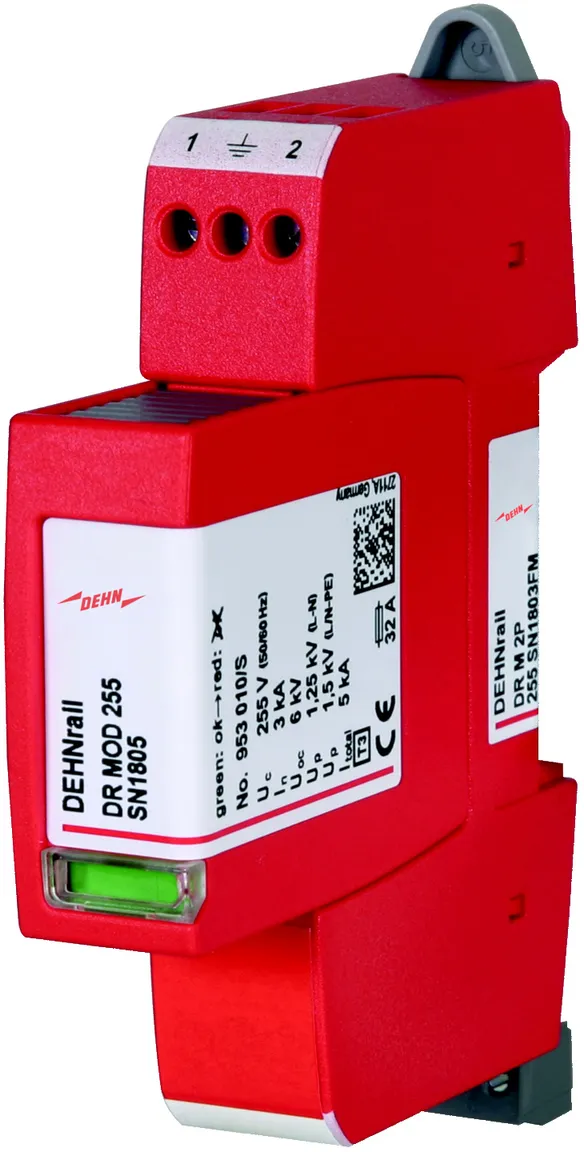

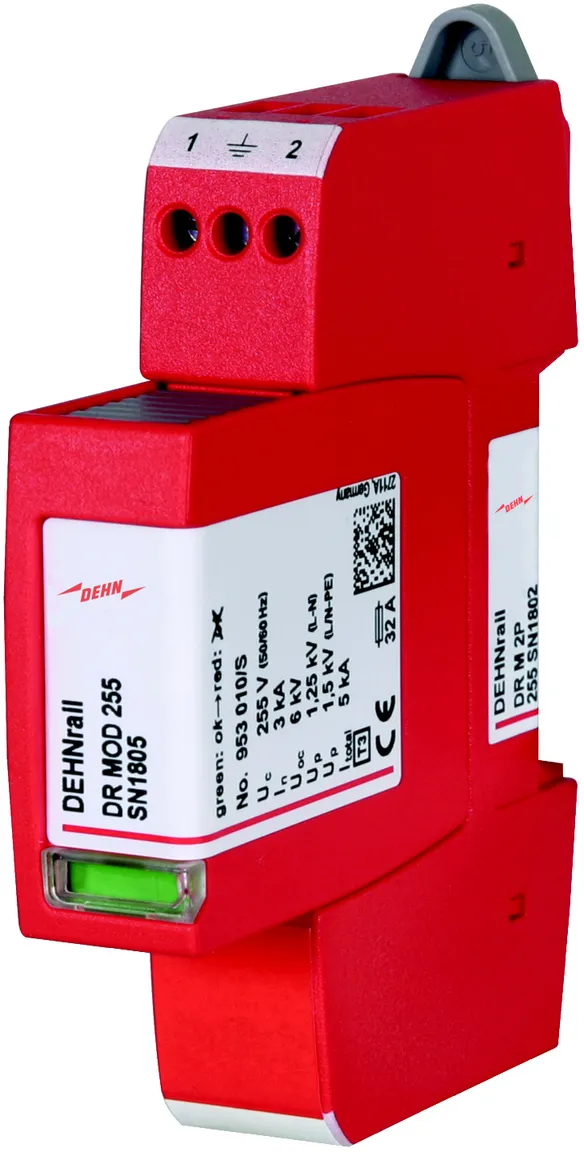

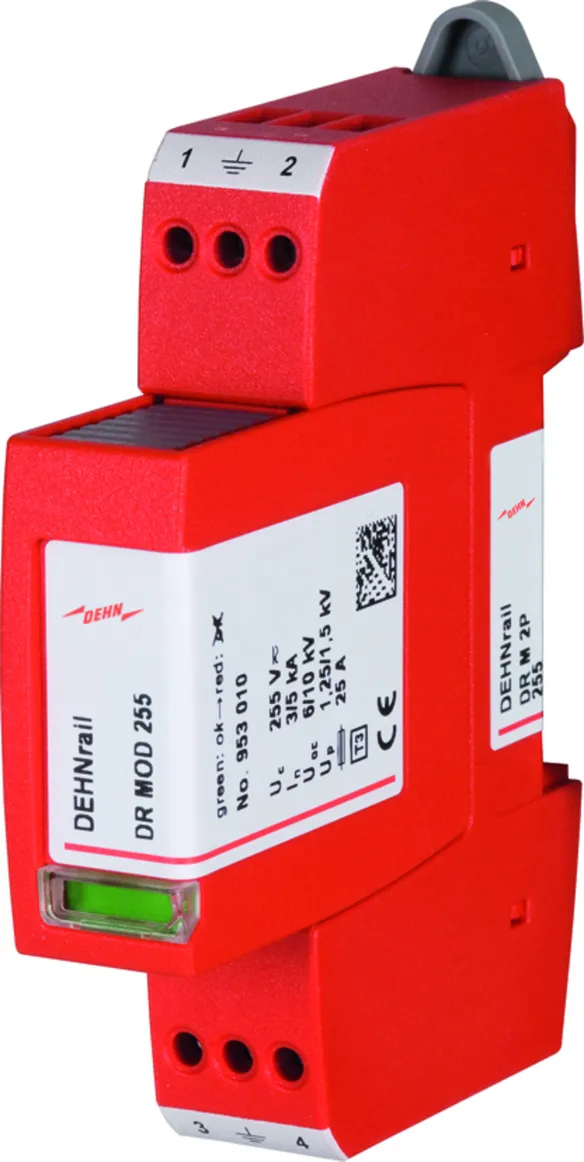

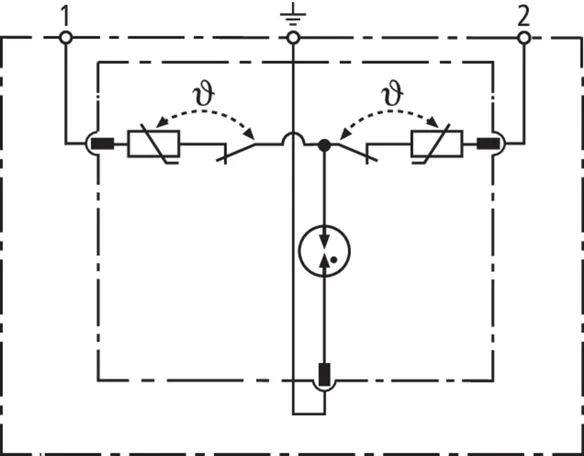

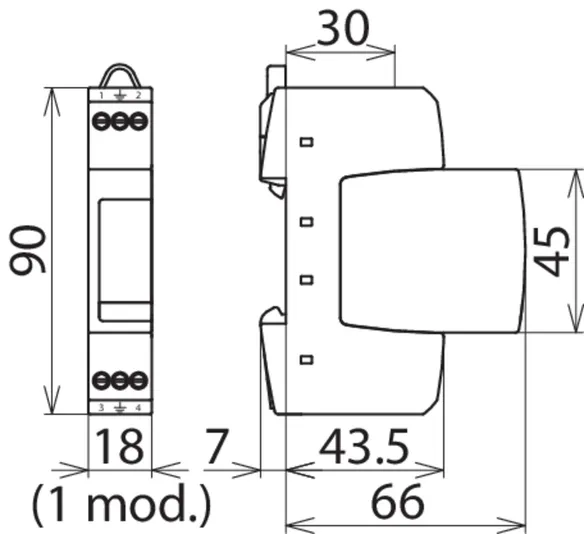

DEHNrail M 2P 255 surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 255 V a.c./d.c.
Total discharge current: 5 kA
Voltage protection level (L/N): < 1.25 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 255
Part No.: 953200
or equivalent.

Certifikáty

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combination wave (U_OC )	6 kV
Combination wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc

Produkt 953200 byl přidán na seznam.

K seznamu

Produkt 953200 byl přidán do nákupního košíku.

K nákupnímu košíku

Obj. č. 953206 DR M 2P 30 FM

GTIN 4013364109711, Číslo celního sazebníku (EU): 85363030, Váha brutto: 94.50 g, Balící jednotka: 1.00 pc(s)

Staré provedení

Vyobrazení

Další informace

CAD data

DEHNrail M 2P 30 FM surge arrester
Modular and pluggable two-pole surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 30 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.18 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 30 FM
Part No.: 953206
or equivalent.

Certifikáty

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	30 V
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 180 / ≤ 630 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	24 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	30 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	30 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Combination wave (U_OC )	2 kV
Combination wave [L+N-PE] (U_OC_total )	4 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 180 / ≤ 630 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 953206 byl přidán na seznam.

K seznamu

Produkt 953206 byl přidán do nákupního košíku.

K nákupnímu košíku

Obj. č. 953207 DR M 2P 60 FM

GTIN 4013364109728, Číslo celního sazebníku (EU): 85363030, Váha brutto: 95.40 g, Balící jednotka: 1.00 pc(s)

Staré provedení

Vyobrazení

Další informace

CAD data

Two-pole DEHNrail M 2P 60 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 60 V a.c./d.c.
Total discharge current: 2 kA
Voltage protection level (L/N): < 0.35 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 60 FM
Part No.: 953207
or equivalent.

Certifikáty

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 350 / ≤ 730 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	48 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	60 V
Nominal load current (a.c.) / (d.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	1 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	2 kA
Combination wave (U_OC )	2 kV
Combination wave [L+N-PE] (U_OC_total )	4 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 350 / ≤ 730 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 953207 byl přidán na seznam.

K seznamu

Produkt 953207 byl přidán do nákupního košíku.

K nákupnímu košíku

Obj. č. 953208 DR M 2P 75 FM

GTIN 4013364109735, Číslo celního sazebníku (EU): 85363030, Váha brutto: 93.70 g, Balící jednotka: 1.00 pc(s)

Staré provedení

Vyobrazení

Další informace

CAD data

Two-pole DEHNrail M 2P 75 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 75 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.4 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 75 FM
Part No.: 953208
or equivalent.

Certifikáty

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	75 V
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 400 / ≤ 730 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	75 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Combination wave (U_OC )	4 kV
Combination wave [L+N-PE] (U_OC_total )	8 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 400 / ≤ 730 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 953208 byl přidán na seznam.

K seznamu

Produkt 953208 byl přidán do nákupního košíku.

K nákupnímu košíku

Obj. č. 953209 DR M 2P 150 FM

GTIN 4013364109742, Číslo celního sazebníku (EU): 85363030, Váha brutto: 93.00 g, Balící jednotka: 1.00 pc(s)

Staré provedení

Vyobrazení

Další informace

CAD data

DEHNrail M 2P 150 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 150 V a.c./d.c.
Total discharge current: 4 kA
Voltage protection level (L/N): < 0.64 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Fault indication

Brand: DEHN
Type: DR M 2P 150 FM
Part No.: 953209
or equivalent.

Certifikáty

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	150 V
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 640 / ≤ 800 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	120 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	150 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	150 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	2 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	4 kA
Combination wave (U_OC )	4 kV
Combination wave [L+N-PE] (U_OC_total )	8 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 640 / ≤ 800 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 953209 byl přidán na seznam.

K seznamu

Produkt 953209 byl přidán do nákupního košíku.

K nákupnímu košíku

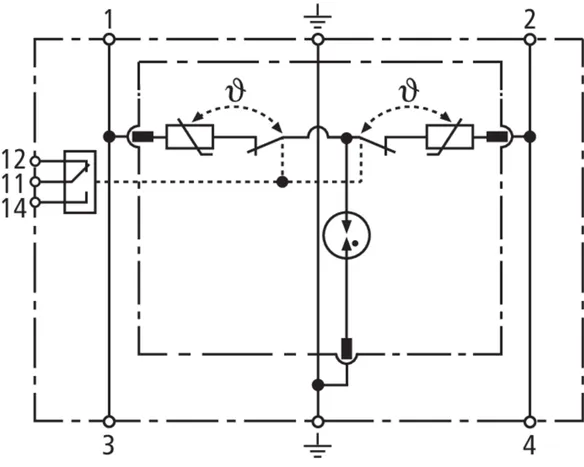

Obj. č. 953205 DR M 2P 255 FM

GTIN 4013364108318, Číslo celního sazebníku (EU): 85363030, Váha brutto: 98.88 g, Balící jednotka: 1.00 pc(s)

Staré provedení

Vyobrazení

Další informace

CAD data

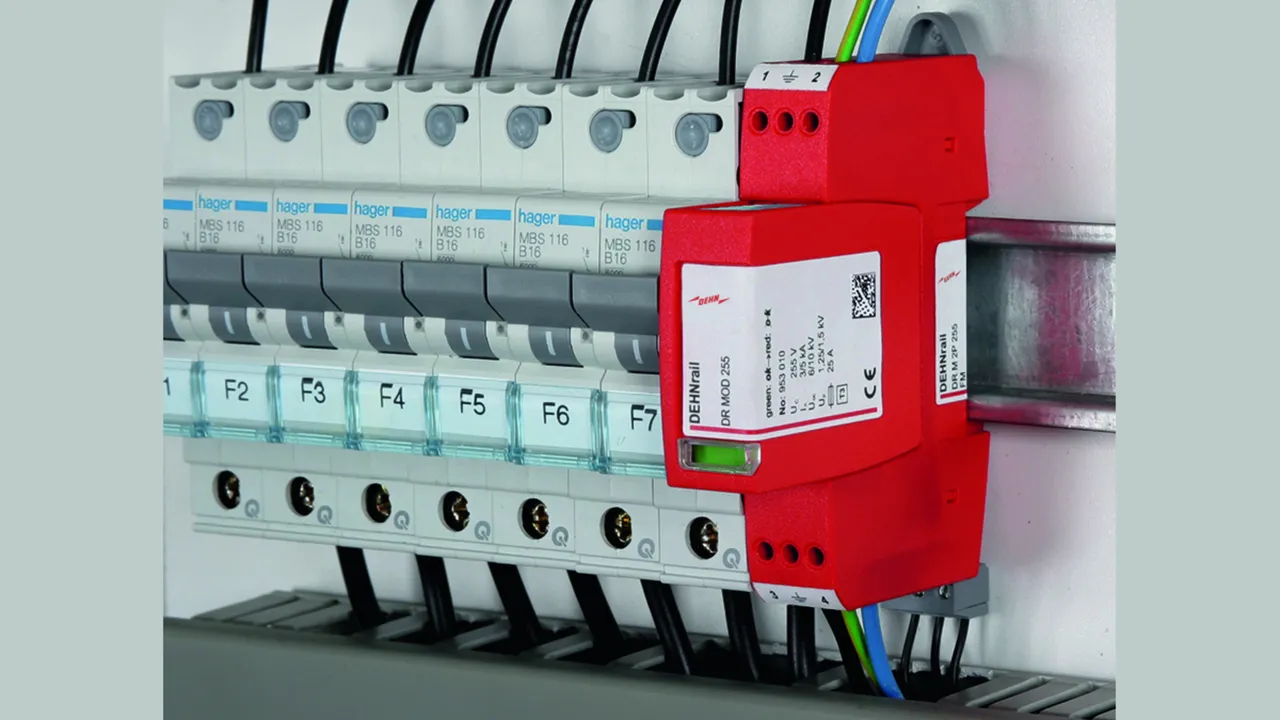

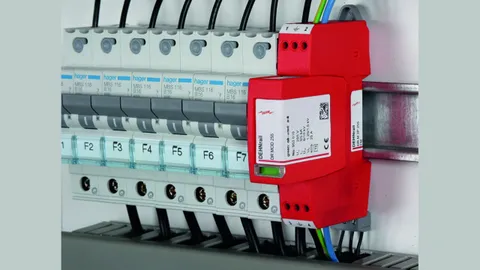

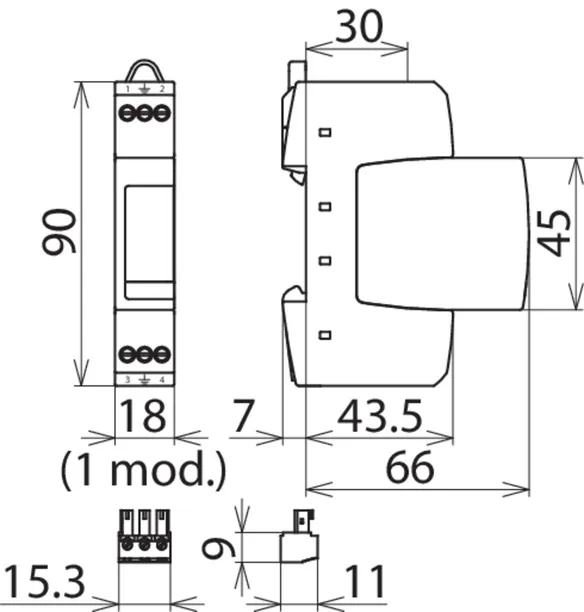

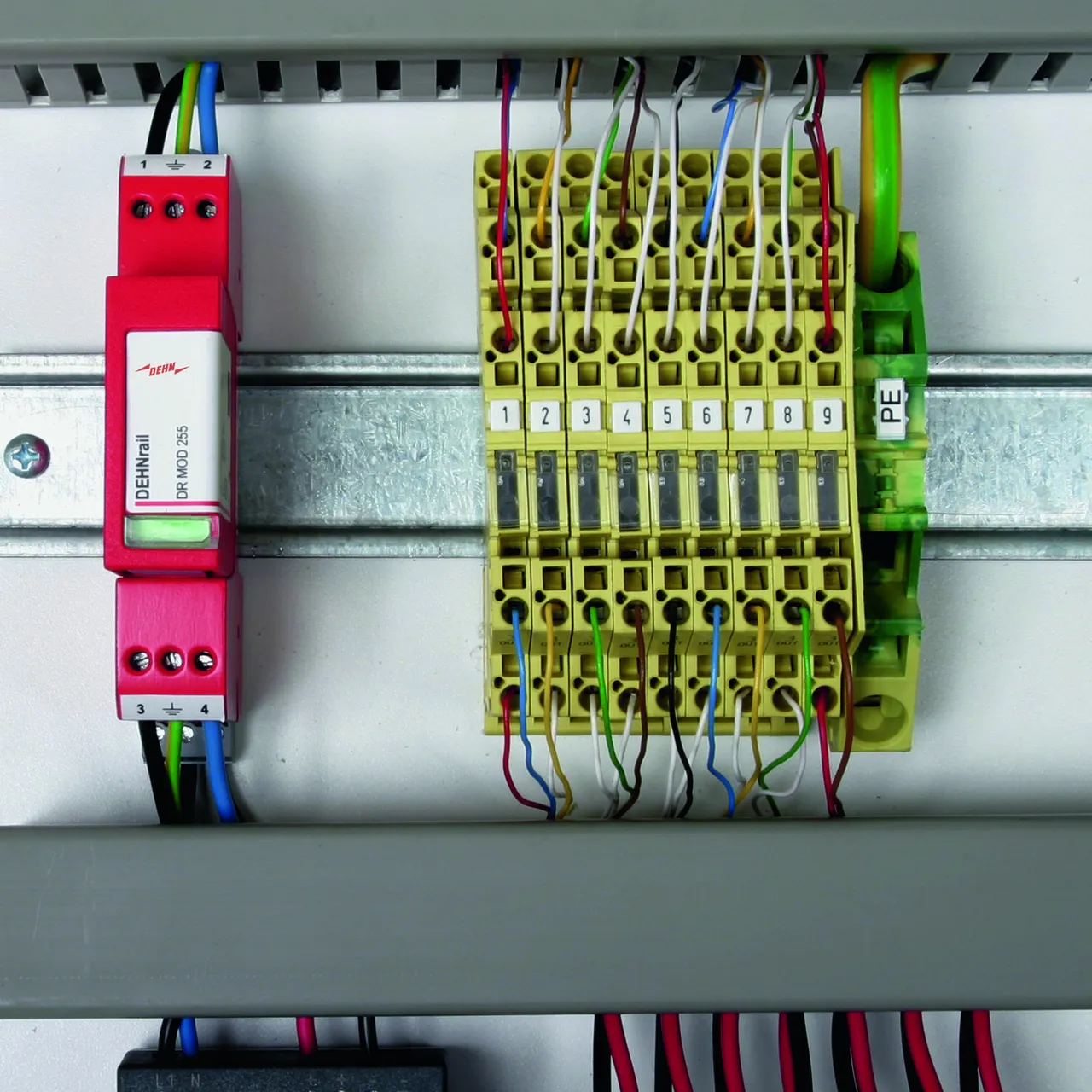

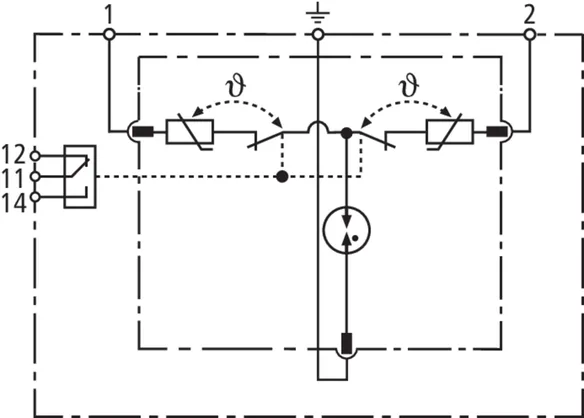

Two-pole DEHNrail M 2P 255 FM surge arrester
Modular and pluggable two-pole
surge arrester for protecting
terminal devices of industrial electronics equipment
Width: 1 module, Fault indication
With remote signalling contact
Type 3 SPD according to EN 61643-11
Max. continuous operating voltage: 255 V a.c./d.c.
Total discharge current: 5 kA
Voltage protection level (L/N): < 1.25 kV
Backup fuse: 25 A gG or B 25 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DR M 2P 255 FM
Part No.: 953205
or equivalent.

Certifikáty

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection	25 A gG or B 25 A
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal load current (a.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combination wave (U_OC )	6 kV
Combination wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG or B 25 A
Short-circuit withstand capability for mains-side overcurrent protection with 25 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	KEMA, VDE, UL, CSA, ATEX, IECEx
ATEX approvals	TÜV 22 ATEX 8930 X: II 3 G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 22.0080X: Ex ec IIC T4 Gc
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible

Produkt 953205 byl přidán na seznam.

K seznamu

Produkt 953205 byl přidán do nákupního košíku.

K nákupnímu košíku

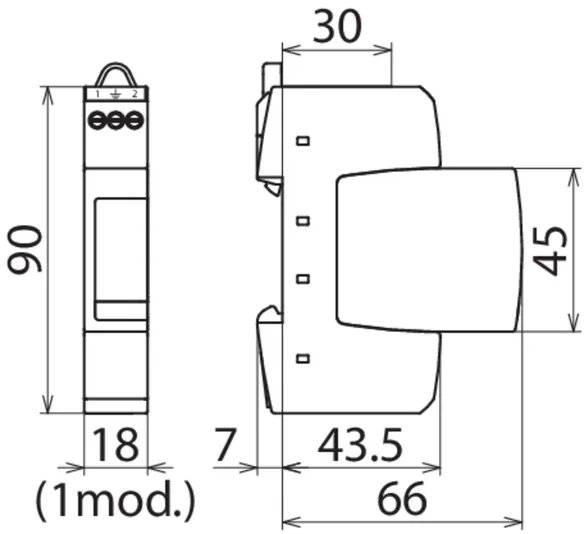

Obj. č. 953228 DR M 2P 255 SN1802

GTIN 4013364158986, Číslo celního sazebníku (EU): 85363030, Váha brutto: 89.70 g, Balící jednotka: 1.00 pc(s)

Vyobrazení

Další informace

CAD data

DEHNrail M 2P 255 SN1802 surge arrester
2-pole modular pluggable surge arrester
for protecting industrial electronic terminal devices
Width: 1 module, Fault indication
Arrester Type 3 acc- to EN 61643-11
Max. contin. operating voltage: 255 V ac/dc
Total discharge current: 5 kA
Protection level L/N: < 1.25 kV
Backup fuse: 32 A gG or B 32 A
Energy-coordinated acc. to IEC 62305-4
with arrester of the Red/Line family

Brand: DEHN
Type: DR M 2P 255 SN1802
Part No.: 953228
or equivalent.

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection	32 A gG or B 32 A
Protection module upon request

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combination wave (U_OC )	6 kV
Combination wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	32 A gG or B 32 A
Short-circuit withstand capability for mains-side overcurrent protection with 32 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Protection module upon request

Produkt 953228 byl přidán na seznam.

K seznamu

Produkt 953228 byl přidán do nákupního košíku.

K nákupnímu košíku

Obj. č. 953229 DR M 2P 255 SN1803FM

GTIN 4013364158993, Číslo celního sazebníku (EU): 85363030, Váha brutto: 93.40 g, Balící jednotka: 1.00 pc(s)

Vyobrazení

Další informace

CAD data

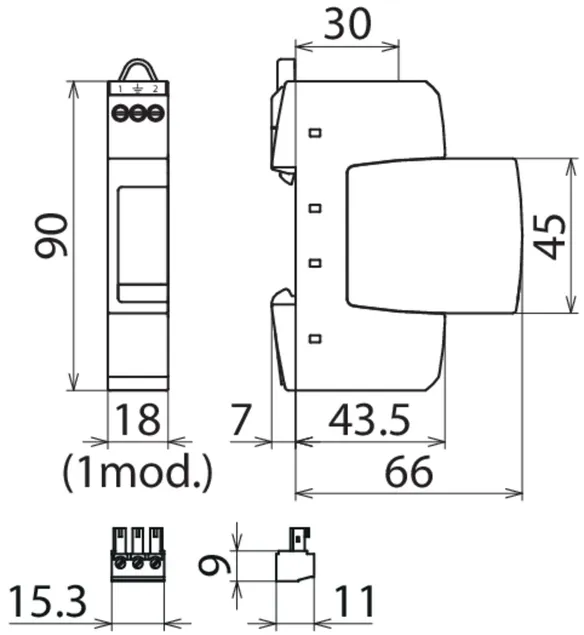

DEHNrail M 2P 255 SN1803FM surge arrester
2-pole modular pluggable surge arrester
for protecting industrial electronic terminal devices
Width: 1 module, Fault indication
With remote signalling contact
Arrester Type 3 acc. to EN 61643-11
Max. cont. operating voltage: 255 V ac/dc
Total discharge curremt: 5 kA
Protection level L/N: < 1.25 kV
Backup fuse: 32 A gG or B 32 A
Energy-coordinated acc. to IEC 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DR M 2P 255 SN1803FM
Part No.: 953229
or equivalent.

Technické informace

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Max. mains-side overcurrent protection	32 A gG or B 32 A
Type of remote signalling contact	changeover contact
Protection module upon request

SPD according to EN 61643-11 / IEC 61643-11	type 3 / class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	255 V
Nominal discharge current (8/20 µs) (I_n )	3 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	5 kA
Combination wave (U_OC )	6 kV
Combination wave [L+N-PE] (U_OC_total )	10 kV
Voltage protection level [L-N] / [L/N-PE] (U_P )	≤ 1250 / ≤ 1500 V
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	32 A gG or B 32 A
Short-circuit withstand capability for mains-side overcurrent protection with 32 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	335 V / 120 min. – withstand
Temporary overvoltage (TOV) [L/N-PE] (U_T) – Characteristic	440 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L+N-PE] (U_T) – Characteristic	1200 V + U_REF / 200 ms – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	0.5 mm²solid / flexible
Cross-sectional area (max.)	4 mm²solid / 2.5 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Protection module upon request

Produkt 953229 byl přidán na seznam.

K seznamu

Produkt 953229 byl přidán do nákupního košíku.

K nákupnímu košíku

DEHNrail modular

Details

DEHNrail M 2P ...

Obj. č. 953201 DR M 2P 30

Pro stažení 953200.stp musíte být přihlášeni.

Pro stažení 953200.igs musíte být přihlášeni.

Pro stažení 953200.jt musíte být přihlášeni.

Pro stažení 953200.dwg musíte být přihlášeni.

Pro stažení 953200m_E.dxf musíte být přihlášeni.

Pro stažení DEHN.953201.wspak musíte být přihlášeni.

Pro stažení 953201_eplan.zip musíte být přihlášeni.

Produkt 953201 byl přidán na seznam.

Produkt 953201 byl přidán do nákupního košíku.

Obj. č. 953202 DR M 2P 60

Pro stažení 953200.stp musíte být přihlášeni.

Pro stažení 953200.igs musíte být přihlášeni.

Pro stažení 953200.jt musíte být přihlášeni.

Pro stažení 953200.dwg musíte být přihlášeni.

Pro stažení 953200m_E.dxf musíte být přihlášeni.

Pro stažení DEHN.953202.wspak musíte být přihlášeni.

Pro stažení DEHN.953202.edz musíte být přihlášeni.

Produkt 953202 byl přidán na seznam.

Produkt 953202 byl přidán do nákupního košíku.

Obj. č. 953203 DR M 2P 75

Pro stažení 953200.stp musíte být přihlášeni.

Pro stažení 953200.igs musíte být přihlášeni.

Pro stažení 953200.jt musíte být přihlášeni.

Pro stažení 953200.dwg musíte být přihlášeni.

Pro stažení 953200m_E.dxf musíte být přihlášeni.

Pro stažení DEHN.953203.wspak musíte být přihlášeni.

Pro stažení DEHN.953203.edz musíte být přihlášeni.

Produkt 953203 byl přidán na seznam.

Produkt 953203 byl přidán do nákupního košíku.

Obj. č. 953204 DR M 2P 150

Pro stažení 953200.stp musíte být přihlášeni.

Pro stažení 953200.igs musíte být přihlášeni.

Pro stažení 953200.jt musíte být přihlášeni.

Pro stažení 953200.dwg musíte být přihlášeni.

Pro stažení 953200m_E.dxf musíte být přihlášeni.

Pro stažení DEHN.953204.wspak musíte být přihlášeni.

Pro stažení DEHN.953204.edz musíte být přihlášeni.

Produkt 953204 byl přidán na seznam.

Produkt 953204 byl přidán do nákupního košíku.

Obj. č. 953200 DR M 2P 255

Pro stažení 953200.stp musíte být přihlášeni.

Pro stažení 953200.igs musíte být přihlášeni.

Pro stažení 953200.jt musíte být přihlášeni.

Pro stažení 953200.dwg musíte být přihlášeni.

Pro stažení 953200m_E.dxf musíte být přihlášeni.

Pro stažení DEHN.953200.wspak musíte být přihlášeni.

Pro stažení 953200_eplan.zip musíte být přihlášeni.

Produkt 953200 byl přidán na seznam.

Produkt 953200 byl přidán do nákupního košíku.

DEHNrail M 2P ... FM

Obj. č. 953206 DR M 2P 30 FM

Pro stažení 953205.stp musíte být přihlášeni.

Pro stažení 953205.igs musíte být přihlášeni.

Pro stažení 953205.jt musíte být přihlášeni.

Pro stažení 953205.dwg musíte být přihlášeni.

Pro stažení 953205m_E.dxf musíte být přihlášeni.

Pro stažení DEHN.953206.wspak musíte být přihlášeni.

Pro stažení 953206_eplan.zip musíte být přihlášeni.

Produkt 953206 byl přidán na seznam.

Produkt 953206 byl přidán do nákupního košíku.

Obj. č. 953207 DR M 2P 60 FM

Pro stažení 953205.stp musíte být přihlášeni.

Pro stažení 953205.igs musíte být přihlášeni.

Pro stažení 953205.jt musíte být přihlášeni.

Pro stažení 953205.dwg musíte být přihlášeni.

Pro stažení 953205m_E.dxf musíte být přihlášeni.

Pro stažení DEHN.953207.wspak musíte být přihlášeni.

Pro stažení DEHN.953207.edz musíte být přihlášeni.

Produkt 953207 byl přidán na seznam.

Produkt 953207 byl přidán do nákupního košíku.

Obj. č. 953208 DR M 2P 75 FM

Pro stažení 953205.stp musíte být přihlášeni.

Pro stažení 953205.igs musíte být přihlášeni.

Pro stažení 953205.jt musíte být přihlášeni.

Pro stažení 953205.dwg musíte být přihlášeni.

Pro stažení 953205m_E.dxf musíte být přihlášeni.
