Roof Conductor Holders with Adhesive Pad

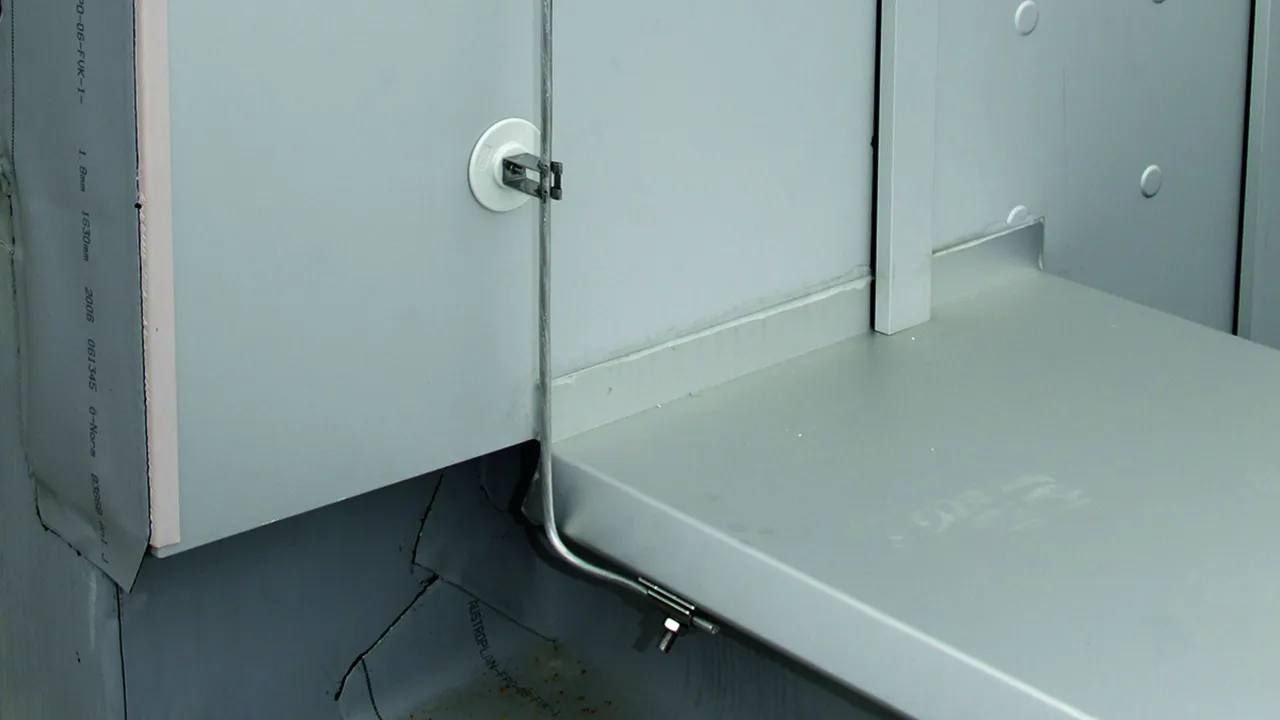

For installing air-termination systems, e.g. on trapezoidal roofs.
The conductor holder can be used on smooth (unstructured) surfaces such as metal roofs / metal surfaces. The conductor holders are stuck to the roof (remove protective backing).

Clean the surface with the special cleaning liquid (Part No. 297 199) as indicated in the installation instructions.
One litre of the special cleaner is sufficient for approx. 1000 adhesive pads.
The roof conductor holders shall be installed at a temperature of ≥ +15 °C.
Robust, weather-resistant and UV-stabilsed type, halogen-free.

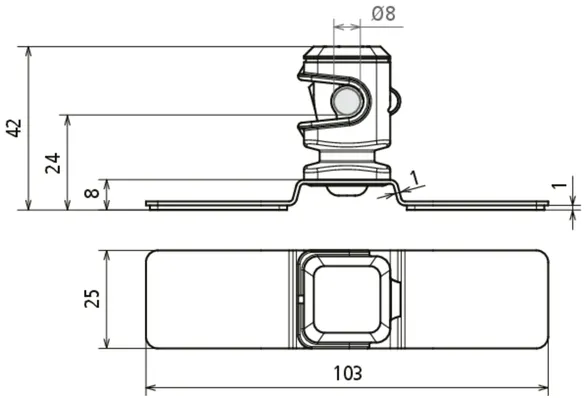

DEHNsnap conductor holder with formable aluminium brace

1 Produkt

Obj. č. 297130 DLH DS 8 H16 KP K AL

GTIN 4013364492523, Číslo celního sazebníku (EU): 85389099, Váha brutto: 19.84 g, Balící jednotka: 50.00 pc(s)

Vyobrazení

Další informace

Roof conductor holder with aluminium brace and adhesive pad (DEHNsnap)
Roof conductor holder with adhesive pad and
formable aluminium brace for installing
air-termination systems on
different sheet roof shapes.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Brace material: Aluminium – formable
Material of conductor holder: Plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm
Type of conductor holder: DEHNsnap
Conductor routing: loose

Brand: DEHN
Type: DLH DS 8 H16 KP K AL
Part No.: 297130
or equivalent.



Technické informace

Brace material Aluminium – formable
Material of conductor holder Plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Type of conductor holder DEHNsnap
Height of conductor holder 16 mm
Conductor routing loose
Dimensions as per CAD

Produkt 297130 byl přidán na seznam.

K seznamu

Produkt 297130 byl přidán do nákupního košíku.

K nákupnímu košíku

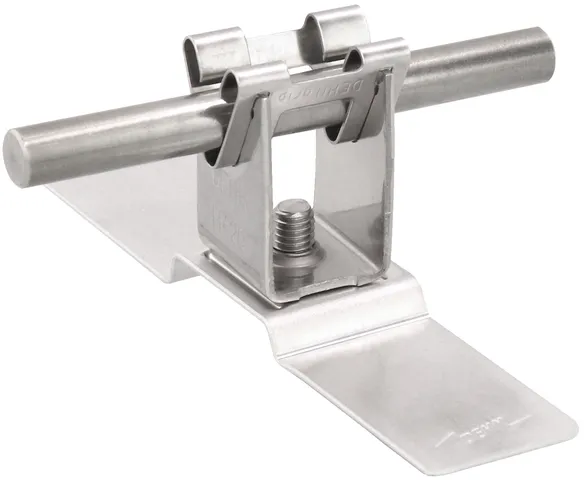

DEHNgrip conductor holder with formable aluminium brace

1 Produkt

Obj. č. 297140 DLH DG 8 H20 KP V2A AL

GTIN 4013364492530, Číslo celního sazebníku (EU): 85389099, Váha brutto: 28.40 g, Balící jednotka: 50.00 pc(s)

Vyobrazení

Další informace

Roof conductor holder with aluminium brace and adhesive pad (DEHNgrip)
Roof conductor holder with adhesive pad and
formable aluminium brace for installing
air-termination systems on
different sheet roof shapes.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Brace material: Aluminium – formable
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Type of conductor holder: DEHNgrip
Conductor routing: loose

Brand: DEHN
Type: DLH DG 8 H20 KP V2A AL
Part No.: 297140
or equivalent.



Technické informace

Brace material Aluminium – formable
Material of conductor holder StSt
Conductor support Rd 8 mm
Type of conductor holder DEHNgrip
Height of conductor holder 20 mm
Conductor routing loose
Dimensions as per CAD

Produkt 297140 byl přidán na seznam.

K seznamu

Produkt 297140 byl přidán do nákupního košíku.

K nákupnímu košíku

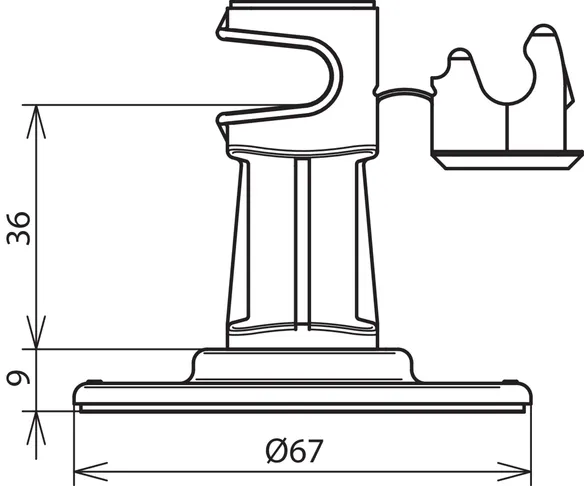

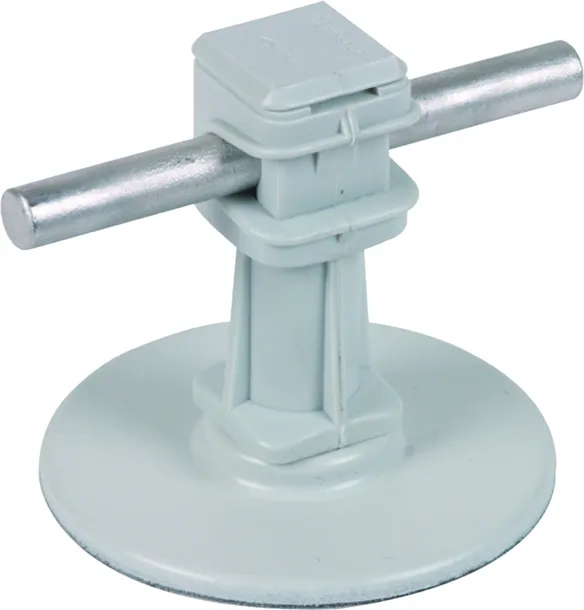

DEHNsnap conductor holder with base plate

1 Produkt

Obj. č. 297110 DLH DS 8 H36 KP67 K GR

GTIN 4013364100886, Číslo celního sazebníku (EU): 85389099, Váha brutto: 34.72 g, Balící jednotka: 50.00 pc(s)

Vyobrazení

Další informace

Roof conductor holder with adhesive pad (DEHNsnap)
Roof conductor holder with adhesive pad for
installing air-termination systems, e.g.
on trapezoidal sheet roofs.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Base plate material: plastic
Base plate colour: grey ●
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm
Type of conductor holder: DEHNsnap
Conductor routing: loose

Brand: DEHN
Type: DLH DS 8 H36 KP67 K GR
Part No.: 297110
or equivalent.

Certifikáty



Technické informace

Base plate material plastic
Base plate colour grey ●
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm
Type of conductor holder DEHNsnap
Height of conductor holder 36 mm
Conductor routing loose
Dimensions Ø 67 mm

Produkt 297110 byl přidán na seznam.

K seznamu

Produkt 297110 byl přidán do nákupního košíku.

K nákupnímu košíku

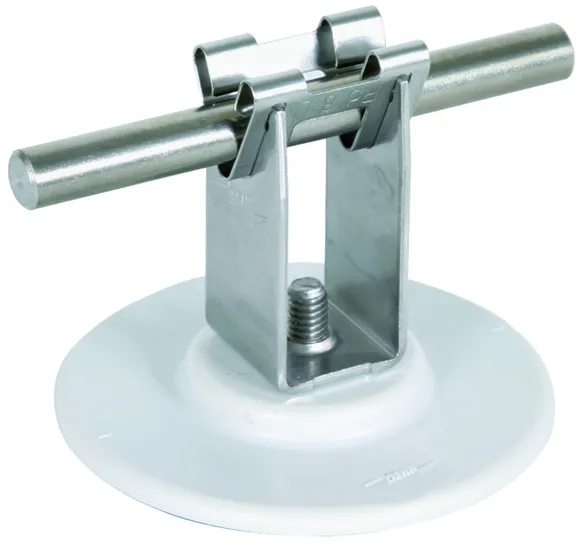

DEHNgrip conductor holder with base plate

1 Produkt

Obj. č. 297120 DLH DG 8 H32 KP67 V2A K GR

GTIN 4013364100916, Číslo celního sazebníku (EU): 85389099, Váha brutto: 46.00 g, Balící jednotka: 50.00 pc(s)

Vyobrazení

Další informace

Roof conductor holder with adhesive pad (DEHNgrip)
Roof conductor holder with adhesive pad for
installing air-termination systems, e.g.
on trapezoidal sheet roofs.
The conductor holder can be used on smooth
(unstructured) surfaces
such as metal roofs / metal
surfaces.
Base plate material: plastic
Base plate colour: grey ●
Material of conductor holder: StSt
Conductor support Rd: 8 mm
Type of conductor holder: DEHNgrip
Conductor routing: loose

Brand: DEHN
Type: DLH DG 8 H32 KP67 V2A K GR
Part No.: 297120
or equivalent.



Technické informace

Base plate material plastic
Base plate colour grey ●
Material of conductor holder StSt
Conductor support Rd 8 mm
Type of conductor holder DEHNgrip
Height of conductor holder 32 mm
Conductor routing loose
Dimensions Ø 67 mm
Standard EN 62561-4
