For protecting solar thermal modules, photovoltaic generators or other roof-mounted structures on steep roofs. The clamping bracket must be adjusted to the diameter of the ridge tiles before it is used to secure the air-termination rod.
1 Produkt
Obj. č.123109
FS 10 1000 FG AL V2A
GTIN4013364107366,
Číslo celního sazebníku (EU):85389099,
Váha brutto:
339.50g,
Balící jednotka:1.00pc(s)

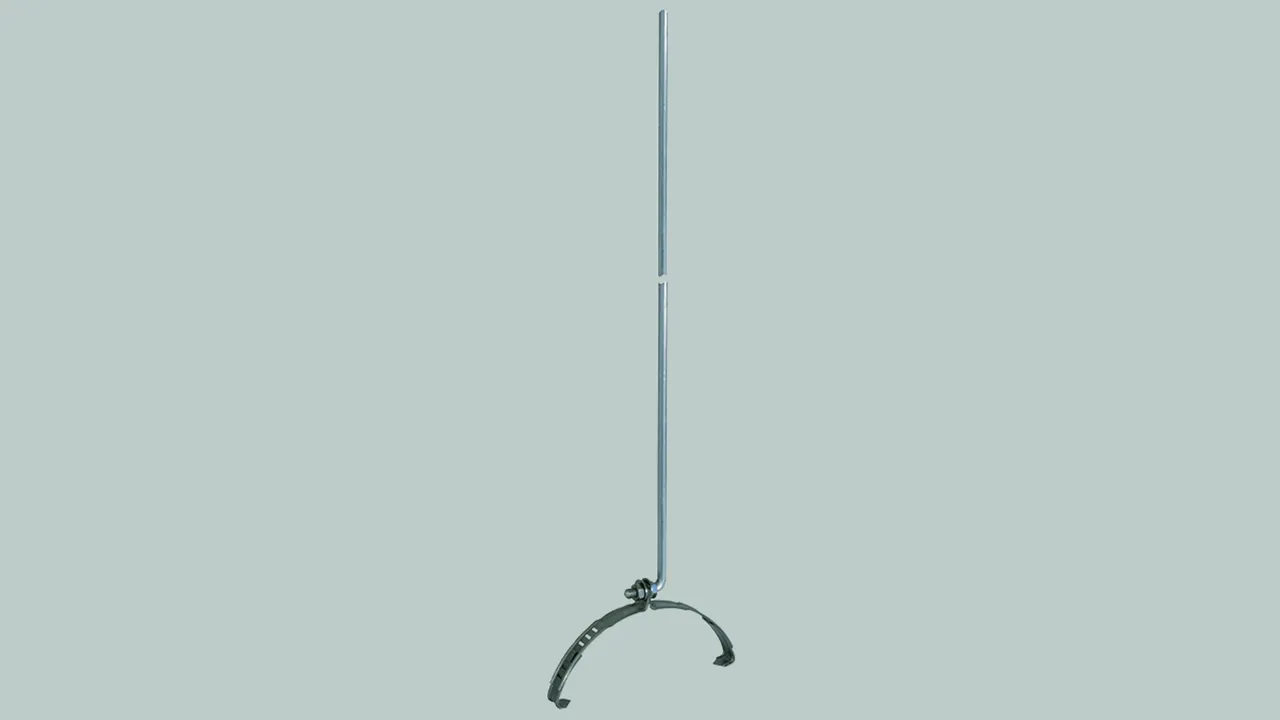

Air-termination rod for ridge and hip tiles, height: 1000 mm Air-termination rod for ridge and hip tiles for protecting e.g. solar thermal modules, photovoltaic generators or other roof-mounted structures on steep roofs. IThe clamping bracket must be adjusted to the diameter of the ridge tiles before it is used to secure the air-termination rod.
Material of air-termination rod: Al

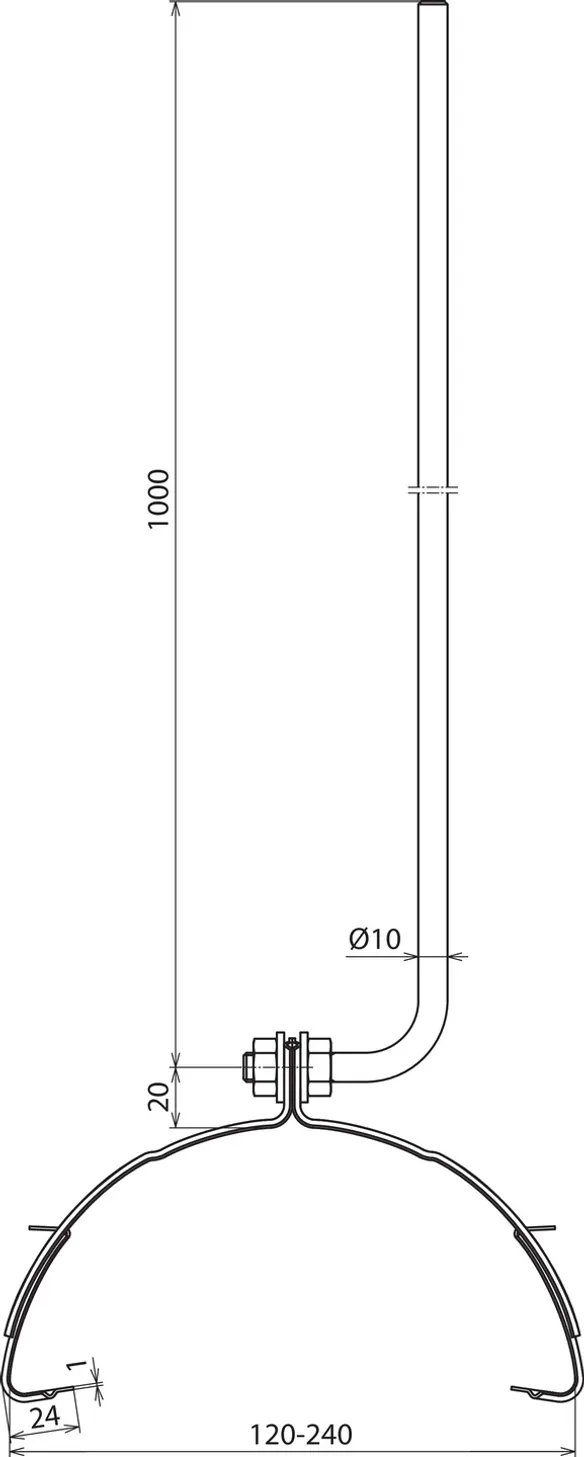

Length: 1000 mm
Clamping range: 120-240 mm
Standard: EN 62561-2
Brand: DEHN
Type: FS 10 1000 FG AL V2A
Part No.: 123109
or equivalent.
