Obj. č. 952653 DG PCB PV SCI 300
GTIN 4013364150713, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.89 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV SCI 300 (Part No. 952 053) |
Max. continuous operating voltage (d.c.) (module) | 300 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Obj. č. 952651 DG PCB PV SCI 500
GTIN 4013364146310, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.89 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV SCI 500 (Part No. 952 051) |
Max. continuous operating voltage (d.c.) (module) | 500 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Obj. č. 952654 DG PCB PV SCI 600
GTIN 4013364149878, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV SCI 600 (Part No. 952 054) |
Max. continuous operating voltage (d.c.) (module) | 600 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Obj. č. 952753 DG PCB PV SCI 300 FM
GTIN 4013364150720, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV SCI 300 (Part No. 952 053) |
Max. continuous operating voltage (d.c.) (module) | 300 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |

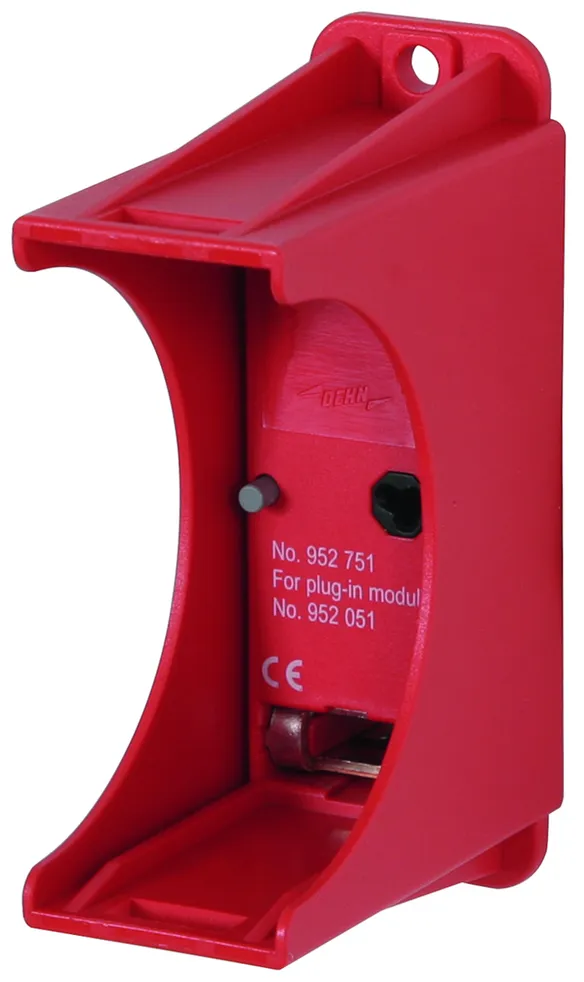

Obj. č. 952751 DG PCB PV SCI 500 FM
GTIN 4013364146327, Číslo celního sazebníku (EU): 85366930, Váha brutto: 20.49 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV SCI 500 (Part No. 952 051) |
Max. continuous operating voltage (d.c.) (module) | 500 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
Obj. č. 952754 DG PCB PV SCI 600 FM
GTIN 4013364149885, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV SCI 600 (Part No. 952 054) |
Max. continuous operating voltage (d.c.) (module) | 600 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
Obj. č. 952643 DG PCB PV 300
GTIN 4013364150737, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.89 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV 300 (Part No. 952 043) |
Max. continuous operating voltage (d.c.) (module) | 300 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Obj. č. 952641 DG PCB PV 500
GTIN 4013364146334, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.89 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV 500 (Part No. 952 041) |
Max. continuous operating voltage (d.c.) (module) | 500 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Obj. č. 952644 DG PCB PV 600
GTIN 4013364149892, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV 600 (Part No. 952 044) |
Max. continuous operating voltage (d.c.) (module) | 600 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Obj. č. 952743 DG PCB PV 300 FM
GTIN 4013364150744, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV 300 (Part No. 952 043) |
Max. continuous operating voltage (d.c.) (module) | 300 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
Obj. č. 952741 DG PCB PV 500 FM
GTIN 4013364146341, Číslo celního sazebníku (EU): 85366930, Váha brutto: 20.49 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV 500 (Part No. 952 041) |
Max. continuous operating voltage (d.c.) (module) | 500 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
Obj. č. 952744 DG PCB PV 600 FM
GTIN 4013364149908, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV 600 (Part No. 952 044) |
Max. continuous operating voltage (d.c.) (module) | 600 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |

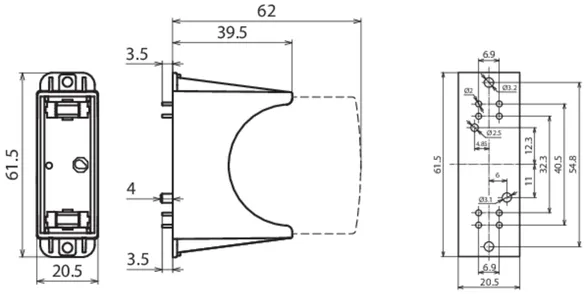

Obj. č. 952610 DG PCB 275
GTIN 4013364149816, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD 275 (Part No. 952 010) |
Max. continuous operating voltage (a.c.) (module) | 275 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Obj. č. 952614 DG PCB 385
GTIN 4013364149847, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD 385 (Part No. 952 014) |
Max. continuous operating voltage (a.c.) (module) | 385 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |

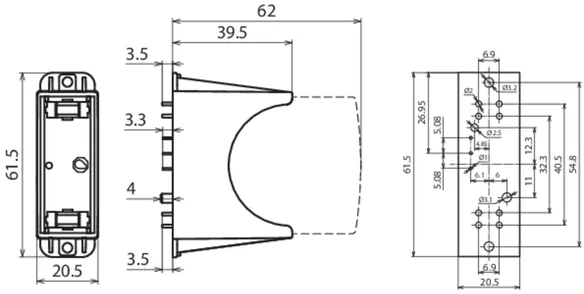

Obj. č. 952710 DG PCB 275 FM
GTIN 4013364149830, Číslo celního sazebníku (EU): 85366930, Váha brutto: 20.59 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD 275 (Part No. 952 010) |
Max. continuous operating voltage (a.c.) (module) | 275 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
Obj. č. 952714 DG PCB 385 FM
GTIN 4013364149854, Číslo celního sazebníku (EU): 85366930, Váha brutto: 20.59 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD 385 (Part No. 952 014) |
Max. continuous operating voltage (a.c.) (module) | 385 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
Obj. č. 952650 DG PCB NPE
GTIN 4013364149823, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD NPE (Part No. 952 050) |
Max. continuous operating voltage (a.c.) (module) | 255 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Obj. č. 952750 DG PCB NPE FM
GTIN 4013364149861, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD NPE (Part No. 952 050) |
Max. continuous operating voltage (a.c.) (module) | 255 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
DEHNguard PCB PV I ... FM
Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).
3 Produkty
Obj. č. 952941 DG PCB PV I 500 FM
GTIN 4013364228177, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV 500 (Part No. 952 041) |
Max. continuous operating voltage (d.c.) (module) | 500 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
Obj. č. 952948 DG PCB PV I 600 FM
GTIN 4013364323919, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD H PV 600 (Part No. 952 048) |
Max. continuous operating voltage (d.c.) (module) | 600 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |

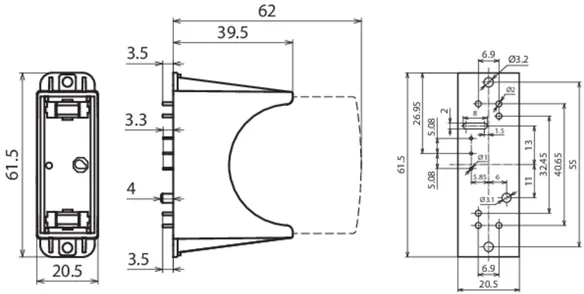

Obj. č. 952949 DG PCB PV I 750 FM
GTIN 4013364323926, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD H PV 750 (Part No. 952 049) |
Max. continuous operating voltage (d.c.) (module) | 750 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
DEHNguard PCB PVSCI I ...FM
Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).
1 Produkt
Obj. č. 952951 DG PCB PVSCI I 500FM
GTIN 4013364228184, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD PV SCI 500 (Part No. 952 051) |
Max. continuous operating voltage (d.c.) (module) | 500 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
DEHNguard PCB I ... FM
Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).
1 Produkt
Obj. č. 952910 DG PCB I 275 FM
GTIN 4013364266865, Číslo celního sazebníku (EU): 85366930, Váha brutto: 19.79 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG MOD 275 (Part No. 952 010) |
Max. continuous operating voltage (a.c.) (module) | 275 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
Obj. č. 952615 DG PCB 385 UL FM
GTIN 4013364535794, Číslo celního sazebníku (EU): 85366930, Váha brutto: 20.49 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG PLU 385 (Part No. 908 014) |
Max. continuous operating voltage (a.c.) (module) | 385 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
Obj. č. 952616 DG PCB 510 UL FM
GTIN 4013364535800, Číslo celního sazebníku (EU): 85366930, Váha brutto: 20.49 g, Balící jednotka: 72.00 pc(s)
Technické informace
Associated protection module | DG PLU 510 (Part No. 908 013) |
Max. continuous operating voltage (a.c.) (module) | 510 V |
For mounting on | directly soldered into PCB |
Degree of protection | IP 20 (protection module plugged in) |
Type of remote signalling contact | changeover contact |
