Measuring Devices, Tools, Accessories

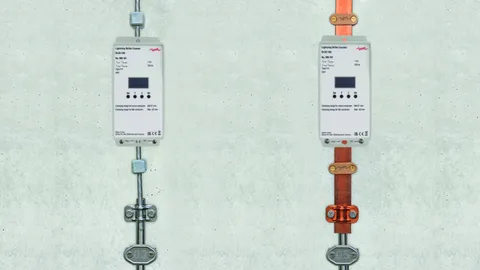

Counter for digitally recording impulse currents.

The discharge current counter is preferably installed between the equipotential bonding bar and the earth-termination system.

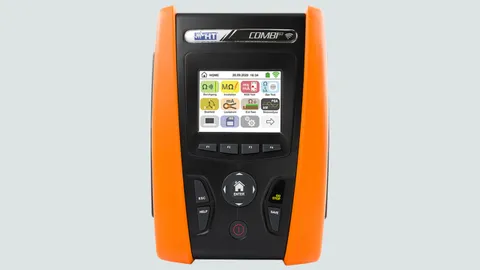

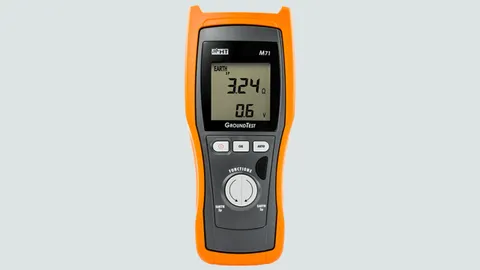

For measuring the earth resistance and soil resistvity, with automatic selection of the measuring range and checking of sensor and auxiliary earth electrode resistance.

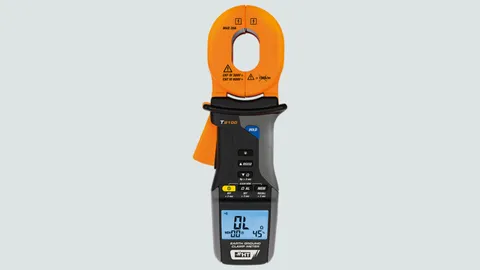

For earth loop measurement.
Easy handling, high-resolution OLED display.
Automatic calibration, Bluetooth interface incl. software.

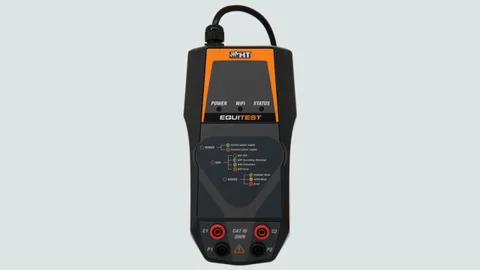

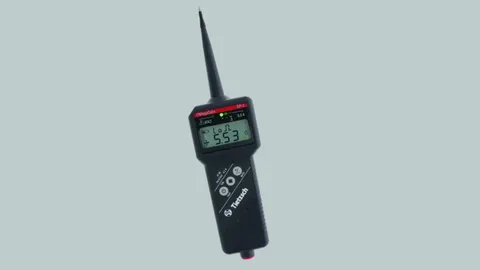

Continuity tester for measuring the resistance of e.g. air-termination and down conductors and subsequently installed reinforcing bars of buildings.
The tester is suited for measuring the resistance of earth-termination systems according to DIN 18014 with a test current of 200 mA.

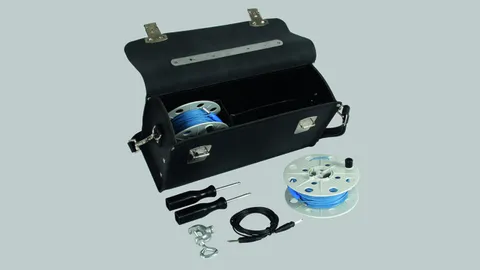

For storing the continuity tester and measuring accessories.Equipment includes:

• 2 coilers with unwinding handle and 50 m measuring line, blue, with banana pin, Part No. 585 320
• 1 measuring line 0.75 mm², 3 m long, black, with banana pin on both sides, Part No. 545 020
• 1 test clamp, clamping range 2-21 mm, Part No. 588 000

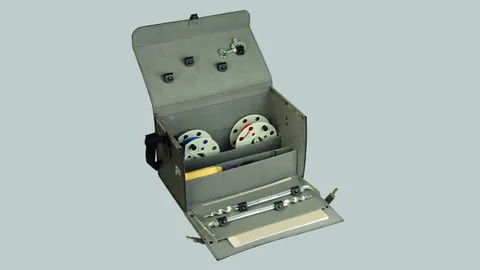

The earth resistance measuring equipment in a case comes with carrying strap for easy transport.Measuring case equipment includes:

• 1 coiler with unwinding handle and 25-m measuring line, red, with banana pin, Part No. 585 310
• 1 coiler with unwinding handle and 50 m measuring line, blue, with banana pin, Part No. 585 320
• 2 augers 350 mm long, Part No. 587 460
• 2 measuring lines, 0.75 mm², 3 m long, black, with banana pins on both sides, Part No. 545 020 (connection between earth-termination system and earth resistance meter)
• 1 measuring line, 0.75 mm², 0.5 m long, red, with banana pin on both sides, Part No. 545 010
• 1 measuring line, 0.75 mm², 0.5 m long, blue, with banana pins on both sides, Part No. 545 011 (connection between coiler and auger)
• 1 test clamp, clamping range 2-21 mm, Part No. 588 000

There is an empty compartment in the case to hold a measuring device.

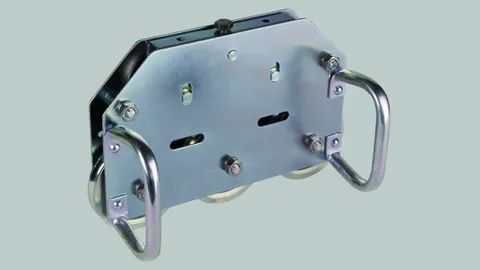

For straightening round conductors made of different materials (HDG steel, Cu and Al).

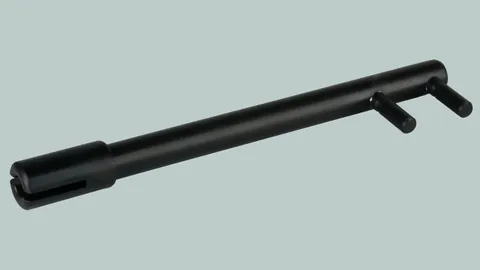

For bending and straightening conductors.

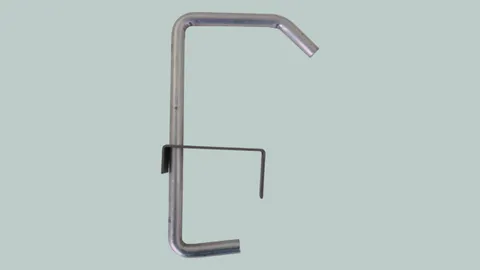

Aluminium support tool with safety bow made of stainless steel, for concrete bases of 8.5kg and 17kg.

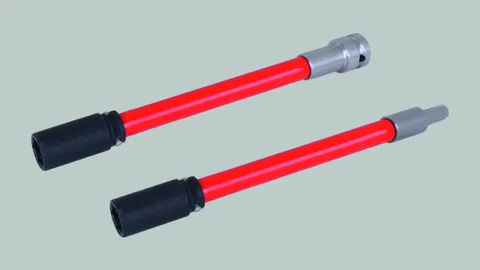

For effortless installation of clamps in hard-to-reach reinforcement layers and use as a universal extension tool.

Our assembly tool is available in three different lengths (200 mm, 400 mm, 800 mm) and can be attached to the cordless screwdriver or impact wrench as required.

It has a socket (width across flats 17) with an integrated spring-loaded magnet. The magnet makes it easy to hold and screw clamps from a distance.

Nuts can also be screwed on easily thanks to the spring mechanism. The red handle provides a firm grip and remains stable while the underlying shaft rotates.

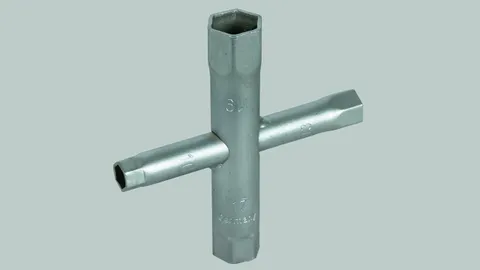

Universal use for installing lightning protection systems. With four wrench sizes.

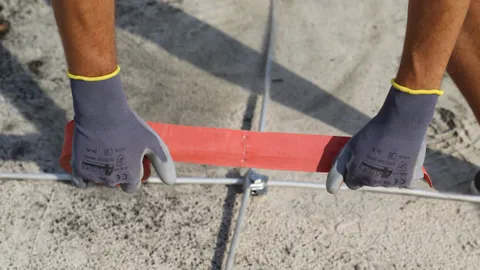

For the corrosion-protective insulation and enclosure of underground connections, such as clamp and screw connections in the field of earthing and lightning protection, but also for the subsequent enclosure of welded seam areas and formed parts as well as sleeves, flanges, fittings, etc.The petrolatum-coated lining on both sides effectively prevents the penetration of dirt and moisture.

• Quick and easy to use
• Strong adhesion
• Stays permanently plastic
• Exceptional electrical insulation
• Does not contain any substances harmful to people or the environment

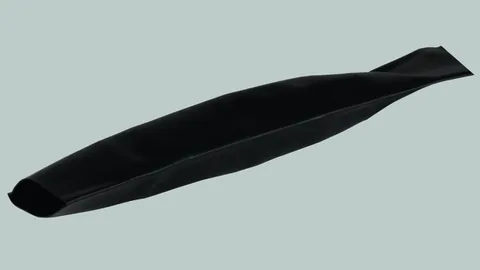

Heat-shrinkable sleeve for coating Rd and Fl conductors, e.g. when leading terminal lugs out of the concrete or earth entries out of the ground.
UV-stabilised, customised length.
